Frezarki
GF Machining Solutions oferuje szerokie portfolio trzy- i pięcioosiowych pionowych centrów obróbczych, umożliwiających obróbkę części o różnym stopniu złożoności - w zależności od wymagań produkcyjnych klienta.
Please accept all cookies to view the external content.
MILL S/X (U) series
MILL X 400
| MILL X 400 | |
| Pallet/clamping surface | UPC 320 x 320 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 68x HSK-E40 |
| Working spindle | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
| Automation | Pallet magazine 7x UPC |
| Availability | Europe |
MILL S 200 U
| MILL S 200 U | |
| Pallet/clamping surface | Macro 54 x 54 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 30x HSK-E32 |
| Working spindle | 50,000 (HSK-E32) / 8.5 / 3.4 rpm/kW/Nm |
| Automation | Pallet magazine 20x Macro 54 |
| Availability | Europe |
MILL P (U) series

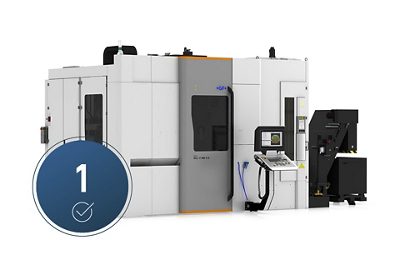

MILL P 800 U
| MILL P 800 U | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 30x HSK-A63 |
| Working spindle | 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
MILL E (U) series
MILL E 800
| MILL E 800 | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 30x ISO 40 |
| Working spindle | 16,000 (ISO 40) / 28 / 115 rpm/kW/Nm |
| Automation | Robot interface |
| Availability | Europe |
MILL E 1200
| MILL E 1200 | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 30x ISO 40 60x HSK-A63 |
| Working spindle | 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm 16'000 (ISO 40) / 28 / 115 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
MILL E 700 U
| MILL E 700 U | |
| Pallet/clamping surface | T-slots UPC 320 x 320 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 30x ISO 40 60x HSK-A63 |
| Working spindle | 12,000 (ISO 40) / 20 / 88 rpm/kW/Nm 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm |
| Automation | Robot interface |
| Availability | Europe |
VCE Pro series
VCE 600 Pro
| VCE 600 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x ISO 40 30x ISO 40 |
| Working spindle | 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
VCE 800 Pro
| VCE 800 Pro |
|
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x ISO 40 |
| Working spindle | 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
VCE 1000 Pro
| VCE 1000 Pro |
|
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x HSK-A63 40x HSK-A63 |
| Working spindle | 16,000 (HSK-A63) / 14.75 / 94 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
VCE 1200 Pro
| VCE 1200 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 40x ISO 40 |
| Working spindle | 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
VCE 1400 Pro
| VCE 1400 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 60x HSK-A63 |
| Working spindle | 16,000 (HSK-A63) / 14.75 / 94 rpm/kW/Nm 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
VCE 1600 Pro
| VCE 1600 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x ISO 50 |
| Working spindle | 6,000 (ISO 50) / 18 / 350 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
