Specializzati in fresatrici verticali e con un approccio orientato al cliente, il portafoglio di fresatrici di GF Machining Solutions comprende macchine a tre e cinque assi, che consentono la gestione di varie complessità delle parti. Scoprite cosa trovare con le nostre fresatrici pronte per esserVi consegnate ora!
Please accept all cookies to view the external content.
| MILL X 400 | |
| Pallet/clamping surface | UPC 320 x 320 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 68x HSK-E40 |
| Working spindle | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
| Automation | Pallet magazine 7x UPC |
| Availability | Europe |
| MILL S 200 U | |
| Pallet/clamping surface | Macro 54 x 54 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 30x HSK-E32 |
| Working spindle | 50,000 (HSK-E32) / 8.5 / 3.4 rpm/kW/Nm |
| Automation | Pallet magazine 20x Macro 54 |
| Availability | Europe |
| MILL P 800 U | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 30x HSK-A63 |
| Working spindle | 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
| MILL E 800 | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 30x ISO 40 |
| Working spindle | 16,000 (ISO 40) / 28 / 115 rpm/kW/Nm |
| Automation | Robot interface |
| Availability | Europe |
| MILL E 1200 | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 30x ISO 40 60x HSK-A63 |
| Working spindle | 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm 16'000 (ISO 40) / 28 / 115 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
| MILL E 700 U | |
| Pallet/clamping surface | T-slots UPC 320 x 320 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 30x ISO 40 60x HSK-A63 |
| Working spindle | 12,000 (ISO 40) / 20 / 88 rpm/kW/Nm 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm |
| Automation | Robot interface |
| Availability | Europe |
| VCE 600 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x ISO 40 30x ISO 40 |
| Working spindle | 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
| VCE 800 Pro |
|
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x ISO 40 |
| Working spindle | 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |

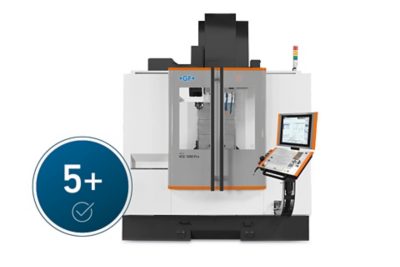

| VCE 1000 Pro |
|
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x HSK-A63 40x HSK-A63 |
| Working spindle | 16,000 (HSK-A63) / 14.75 / 94 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
| VCE 1200 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 40x ISO 40 |
| Working spindle | 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
| VCE 1400 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 60x HSK-A63 |
| Working spindle | 16,000 (HSK-A63) / 14.75 / 94 rpm/kW/Nm 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm |
| Automation | |
| Availability | Europe |

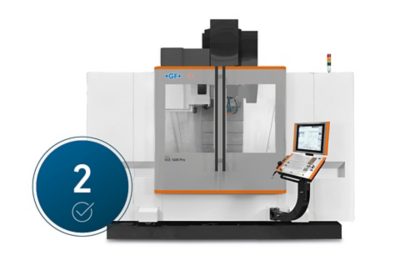

| VCE 1600 Pro | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 620 (Heidenhain) |
| Tool magazine | 24x ISO 50 |
| Working spindle | 6,000 (ISO 50) / 18 / 350 rpm/kW/Nm |
| Automation | |
| Availability | Europe |
