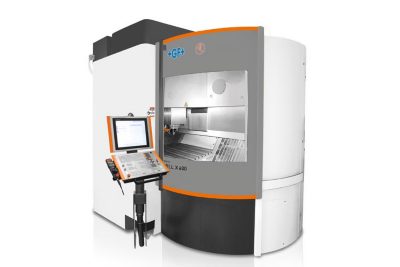

MILL X 400
Main Specifications
Main Specifications |
|
Travel X, Y, Z | 500 x 450 x 360 mm |
Feed rate X/Y/Z | 100 m/min |
Working table | System 3R Dynafix 280x280 mm & 350x350 mm Erowa UPC 320x320 mm |
Table load | 120 kg |
Working spindle | 30'000 rpm - HSK-E40 42'000 rpm - HSK-E40 |
Tool magazine | 18 / 36 / 68 / Tool Tower 168 / 308 pockets |
Automation | Pallet magazine 7 pallets Dynafix / UPC System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis |
