Com mais de um século de experiência, a GF Machining Solutions lidera a indústria de corte por Eletroerosão, oferecendo soluções de EDM a fio confiáveis e de alto desempenho. Reconhecidos por nossa expertise técnica e um robusto portfólio de patentes, somos seu parceiro ideal para usinagem ultraprecisa, fabricação de moldes e corte de alta precisão. Explore nossa lista de máquinas para um desempenho excepcional em EDM por corte a fio; elas estão prontas para serem entregues a você agora!

Please accept all cookies to view the external content.

CUT X series
CUT X 500
CUT X 350
CUT X 350
Travel X, Y, Z 350 x 250 x 256 mm
13.78 x 9.84 x 10.08 in
Max. workpiece dimensions 800 x 550 x 250 mm
31.49 x 21.65 x 9.84 in
Max. workpiece weight 450 kg
992 lbs
Travel U, V ± 70 mm
2.75 in
Wire diameters
Availability Europe
CUT X 500
CUT X 500
CUT X 500
Travel X, Y, Z 500 x 350 x 256 mm
19.68 x 13.78 x 10.08 in
Max. workpiece dimensions 1050 x 700 x 250 mm
41.34 x 27.56 x 9.84 in
Max. workpiece weight 800 kg
1764 lbs
Travel U, V ± 70 mm
2.75 in
Wire diameters
Availability Europe

CUT x000 series

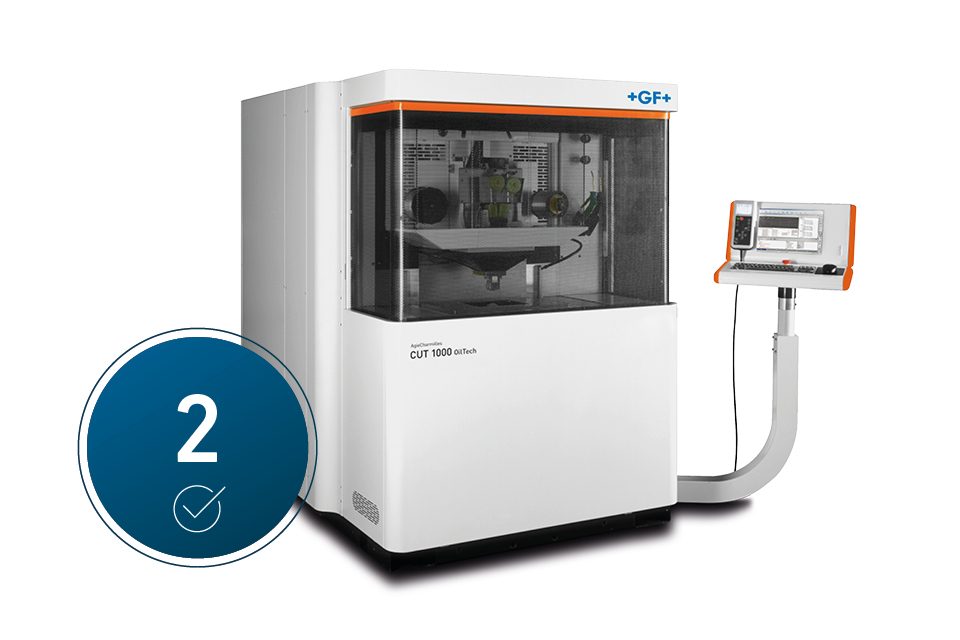

CUT 1000 OilTech
CUT 1000 OilTech
CUT 1000 OilTech
Travel X, Y, Z 220 x 160 x 100 mm
8.66 x 6.3 x 3.93
Max. workpiece dimensions 300 x 200 x 80 mm
11.81 x 7.87 x 3.14 in
Max. workpiece weight 35 kg
77 lbs
Travel U, V ± 40 mm
± 1.57 in
Wire diameters 0.07 - 0.20 (0.02-0.05 optional) mm
0.003 - 0.008 (0.0008 - 0.002 optional) in
Availability Europe

CUT P series
CUT P 350 Pro
CUT P 350 Pro
CUT P 350 Pro
Travel X, Y, Z 350 x 250 x 220 mm
13.77 x 8.66 x 8.66 in
Max. workpiece dimensions 1000 x 550 x 220 mm
39.37 x 21.65 x 8.66 in
Max. workpiece weight 750 kg
1653 lbs
Travel U, V 350 x 220 mm
13.77 x 8.66 in
Wire diameters 0.15 - 0.33 (0.07-0.10 optional) mm
0.006 - 0.013 (0.003 - 0.004 optional) in
Availability Europe

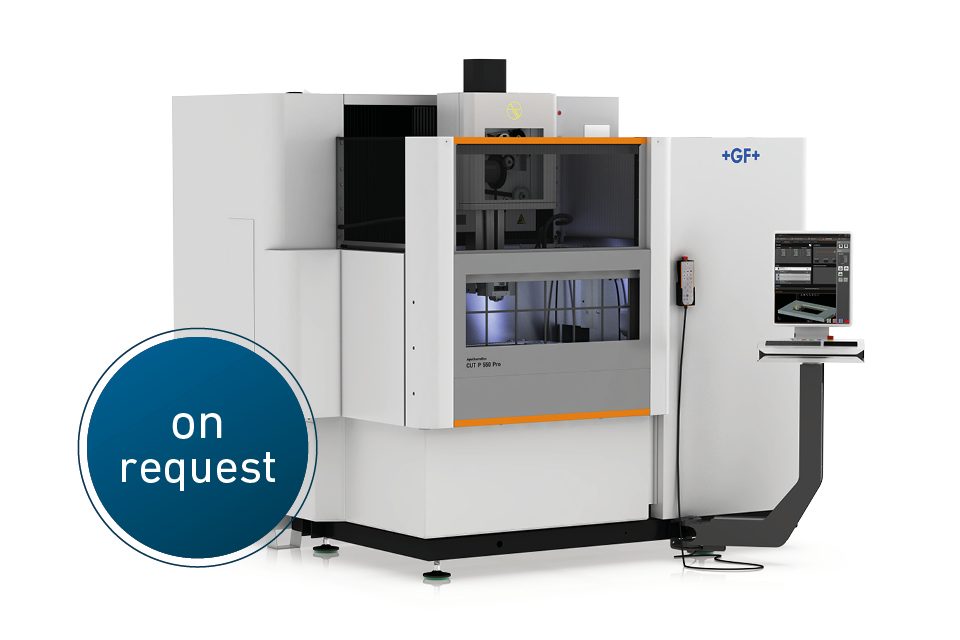

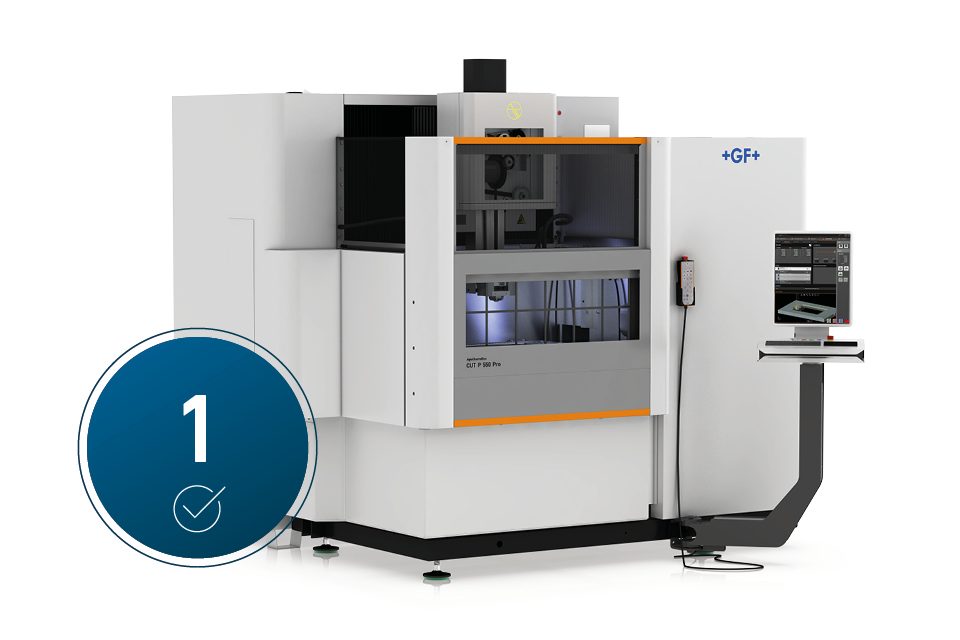

CUT P 550 Pro
CUT P 550 Pro
CUT P 550 Pro
Travel X, Y, Z 550 x 350 x 400 mm
21.65 x 13.77 x 15.75 in
Max. workpiece dimensions 1200 x 700 x 400 mm
47.24 x 27.56 x 15.75 in
Max. workpiece weight 1500 kg
3307 lbs
Travel U, V 550 x 350 mm
21.65 x 13.77 in
Wire diameters 0.15-0.33 (0.07-0.10 optional) mm
0.006-0.013 (0.003-0.004 optional) in
Availability Europe

CUT F series

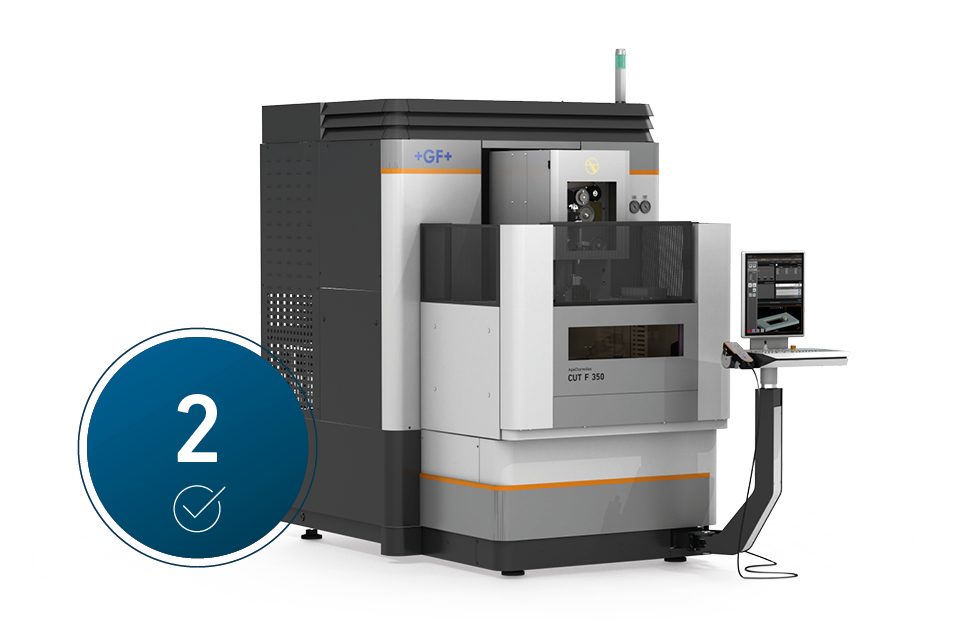

CUT F 350
CUT F 350
CUT F 350
Travel X, Y, Z 350 x 250 x 250 mm
13.78 x 9.84 x 9.84 in
Max. workpiece dimensions 820 x 680 x 250 mm
32.28 x 26.77 x 9.84 in
Max. workpiece weight 400 kg
882 lbs
Travel U, V ± 45 mm
± 1.77 in
Wire diameters 0.10-0.30 mm
0.004-0.012 in
Availability Europe

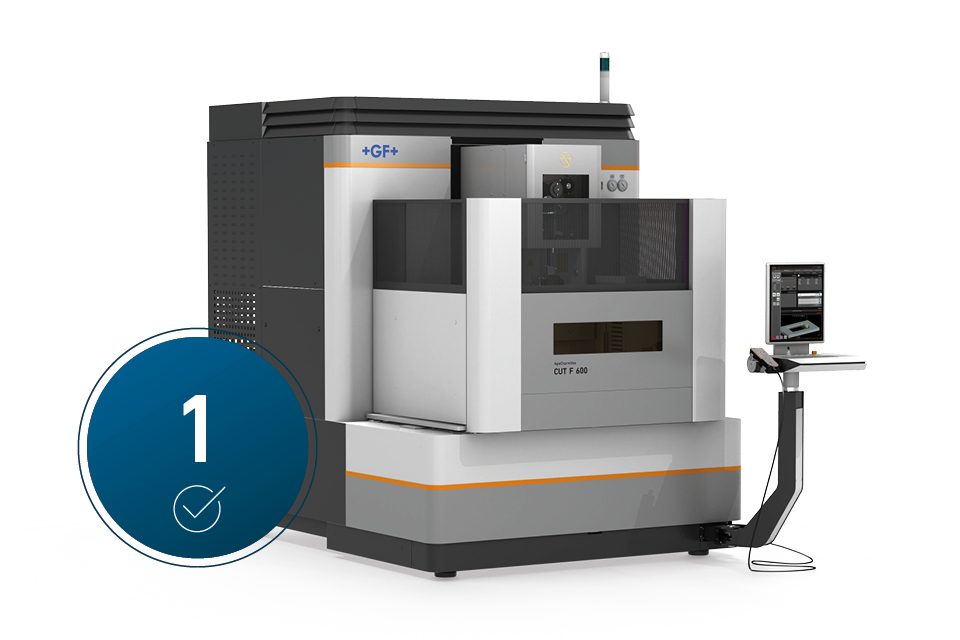

CUT F 600
CUT F 600
CUT F 600
Travel X, Y, Z 600 x 400 x 350 mm
23.62 x 15.75 x 13.78 in
Max. workpiece dimensions 1030 x 800 x 350 mm
40.55 x 31.5 x 13.78 in
Max. workpiece weight 1000 kg
2205 lbs
Travel U, V ± 50 mm
± 1.97 in
Wire diameters 0.10-0.30 mm
0.004-0.012 in
Availability Europe

CUT E series

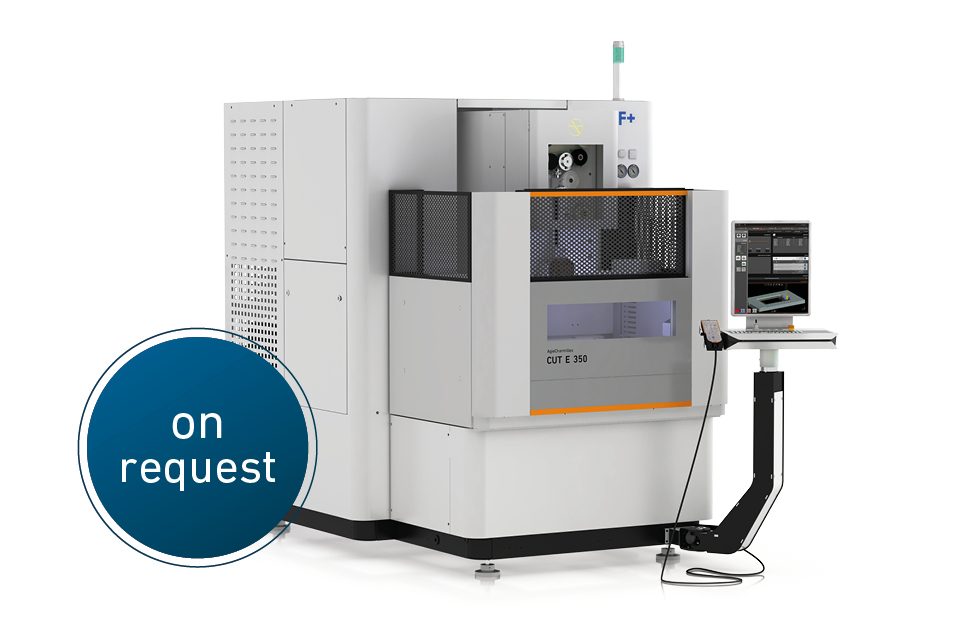

CUT E 350 (UNIQUA HMI)
CUT E 350 (UNIQUA HMI)
CUT E 350 (UNIQUA HMI)
Travel X, Y, Z 350 x 250 x 250 mm
13.78 x 9.84 x 9.84 in
Max. workpiece dimensions 820 x 680 x 250 mm
32.28 x 26.77 x 9.84 in
Max. workpiece weight 400 kg
882 lbs
Travel U, V ± 45 mm
± 1.77 in
Wire diameters 0.15-0.30 (0.10 optional) mm
0.006-0.012 (0.04 optional) in
Availability Europe

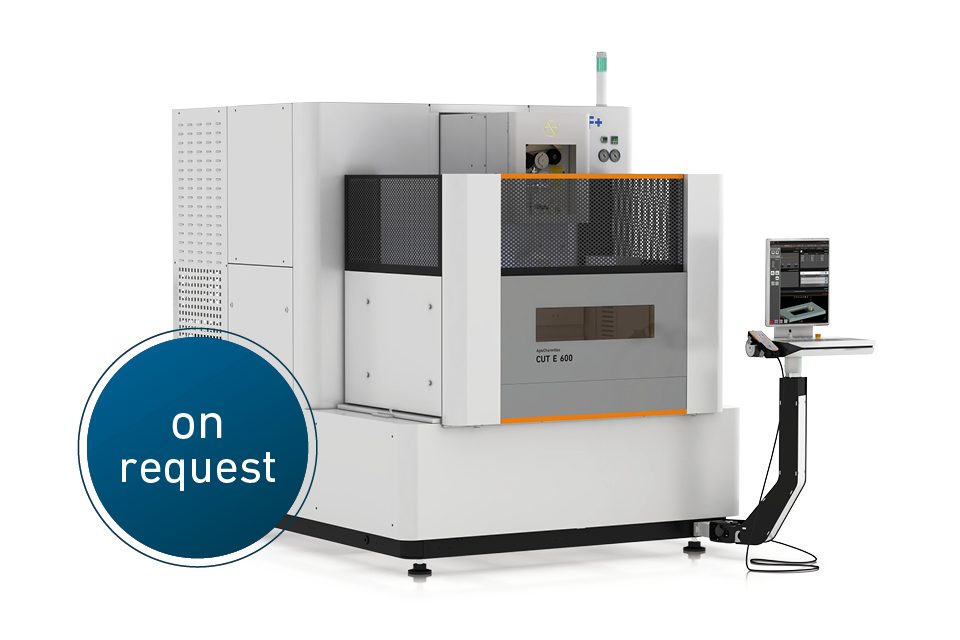

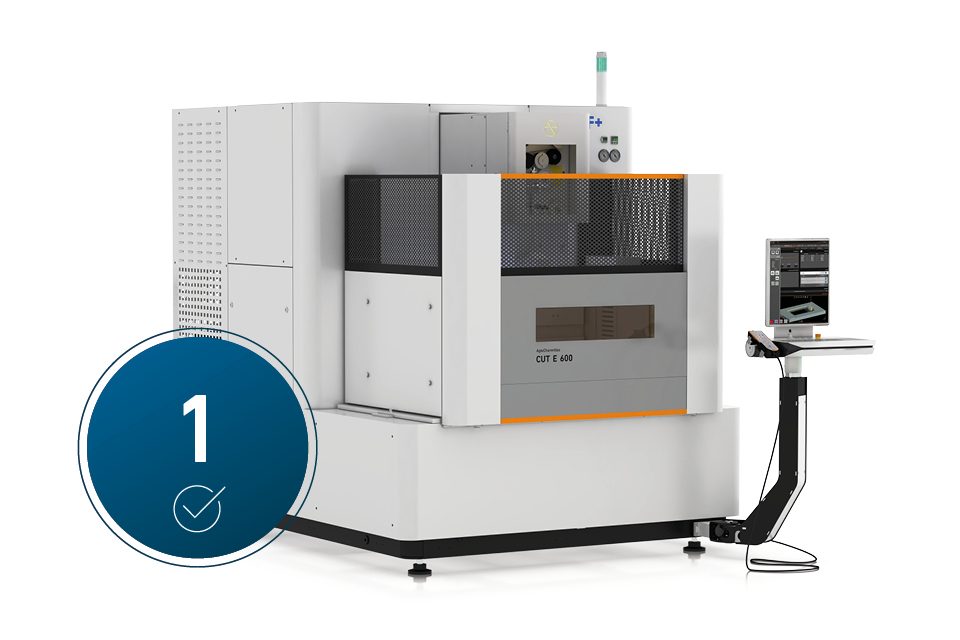

CUT E 600 (UNIQUA HMI)
CUT E 600 (UNIQUA HMI)
CUT E 600 (UNIQUA HMI)
Travel X, Y, Z 600 x 400 x 350 mm
23.62 x 15.75 x 13.78 in
Max. workpiece dimensions 1030 x 800 x 350 mm
40.55 x 31.5 x 13.78 in
Max. workpiece weight 1000 kg
2205 lbs
Travel U, V ± 50 mm
± 1.97 in
Wire diameters 0.15-0.30 (0.10 optional) mm
0.006-0.012 (0.04 optional) in
Availability Europe

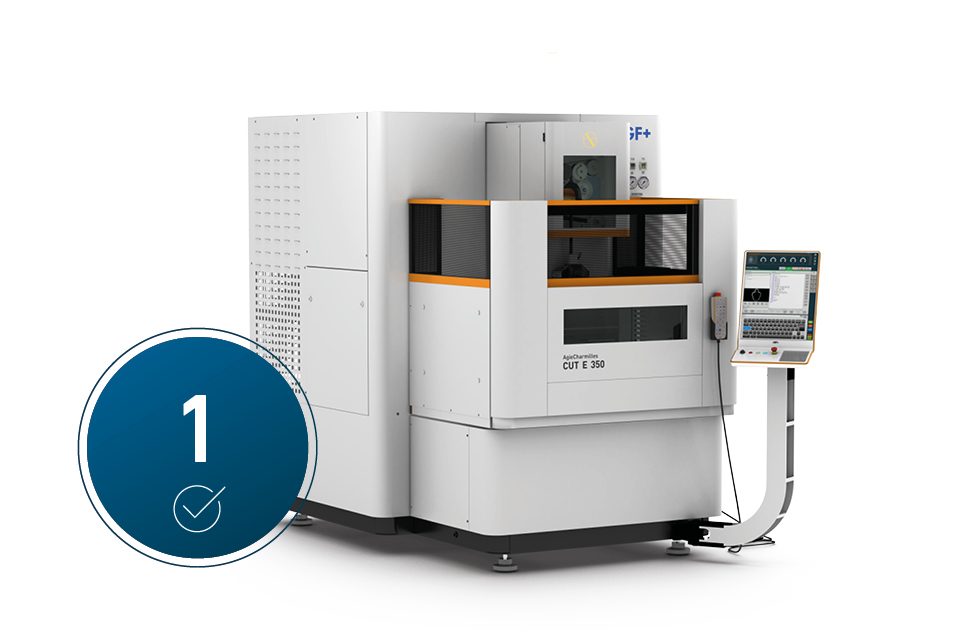

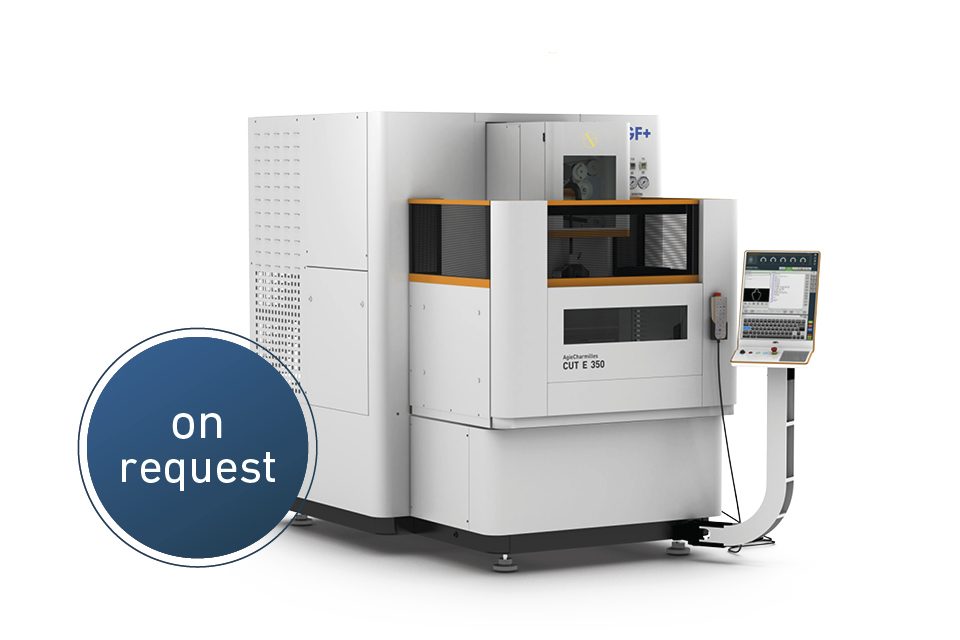

CUT E 350
CUT E 350
CUT E 350
Travel X, Y, Z 350 x 250 x 250 mm
13.78 x 9.84 x 9.84 in
Max. workpiece dimensions 820 x 680 x 250 mm
32.28 x 26.77 x 9.84 in
Max. workpiece weight 400 kg
882 lbs
Travel U, V ± 45 mm
± 1.77 in
Wire diameters 0.15-0.30 (0.10 optional) mm
0.006-0.012 (0.04 optional) in
Availability Europe
CUT E 600
CUT E 600
CUT E 600
Travel X, Y, Z 600 x 400 x 350 mm
23.62 x 15.75 x 13.78 in
Max. workpiece dimensions 1030 x 800 x 350 mm
40.55 x 31.5 x 13.78 in
Max. workpiece weight 1000 kg
2205 lbs
Travel U, V ± 50 mm
± 1.97 in
Wire diameters 0.15-0.30 (0.10 optional) mm
0.006-0.012 (0.04 optional) in
Availability Europe
