Ready for Delivery – Wire-cutting EDM

Ready for Delivery - Wire-cutting EDM

With over a century of experience, GF Machining Solutions leads the EDM cutting industry, offering reliable, high-performance wire EDM solutions. Renowned for technical expertise and a robust patent portfolio, we are your ideal partner for ultraprecise machining, mold making, and high-precision cutting. Explore our list of machines for exceptional wire-cutting EDM performance, they are ready to be delivered to you now!

Please accept all cookies to view the external content.

CUT X
CUT x000
CUT P
CUT F
CUT E

CUT X series

CUT X 350
Travel X, Y, Z	350 x 250 x 256 mm 13.78 x 9.84 x 10.08 in
Max. workpiece dimensions	800 x 550 x 250 mm 31.49 x 21.65 x 9.84 in
Max. workpiece weight	450 kg 992 lbs
Travel U, V	± 70 mm 2.75 in
Wire diameters
Availability	Europe

CUT X 500
Travel X, Y, Z	500 x 350 x 256 mm 19.68 x 13.78 x 10.08 in
Max. workpiece dimensions	1050 x 700 x 250 mm 41.34 x 27.56 x 9.84 in
Max. workpiece weight	800 kg 1764 lbs
Travel U, V	± 70 mm 2.75 in
Wire diameters
Availability	Europe

CUT x000 series

CUT 1000 OilTech
Travel X, Y, Z	220 x 160 x 100 mm 8.66 x 6.3 x 3.93
Max. workpiece dimensions	300 x 200 x 80 mm 11.81 x 7.87 x 3.14 in
Max. workpiece weight	35 kg 77 lbs
Travel U, V	± 40 mm ± 1.57 in
Wire diameters	0.07 - 0.20 (0.02-0.05 optional) mm 0.003 - 0.008 (0.0008 - 0.002 optional) in
Availability	Europe

CUT P series

CUT P 350 Pro
Travel X, Y, Z	350 x 250 x 220 mm 13.77 x 8.66 x 8.66 in
Max. workpiece dimensions	1000 x 550 x 220 mm 39.37 x 21.65 x 8.66 in
Max. workpiece weight	750 kg 1653 lbs
Travel U, V	350 x 220 mm 13.77 x 8.66 in
Wire diameters	0.15 - 0.33 (0.07-0.10 optional) mm 0.006 - 0.013 (0.003 - 0.004 optional) in
Availability	Europe

CUT P 550 Pro
Travel X, Y, Z	550 x 350 x 400 mm 21.65 x 13.77 x 15.75 in
Max. workpiece dimensions	1200 x 700 x 400 mm 47.24 x 27.56 x 15.75 in
Max. workpiece weight	1500 kg 3307 lbs
Travel U, V	550 x 350 mm 21.65 x 13.77 in
Wire diameters	0.15-0.33 (0.07-0.10 optional) mm 0.006-0.013 (0.003-0.004 optional) in
Availability	Europe

CUT F series

CUT F 350
Travel X, Y, Z	350 x 250 x 250 mm 13.78 x 9.84 x 9.84 in
Max. workpiece dimensions	820 x 680 x 250 mm 32.28 x 26.77 x 9.84 in
Max. workpiece weight	400 kg 882 lbs
Travel U, V	± 45 mm ± 1.77 in
Wire diameters	0.10-0.30 mm 0.004-0.012 in
Availability	Europe

CUT F 600
Travel X, Y, Z	600 x 400 x 350 mm 23.62 x 15.75 x 13.78 in
Max. workpiece dimensions	1030 x 800 x 350 mm 40.55 x 31.5 x 13.78 in
Max. workpiece weight	1000 kg 2205 lbs
Travel U, V	± 50 mm ± 1.97 in
Wire diameters	0.10-0.30 mm 0.004-0.012 in
Availability	Europe

CUT E series

CUT E 350 (UNIQUA HMI)
Travel X, Y, Z	350 x 250 x 250 mm 13.78 x 9.84 x 9.84 in
Max. workpiece dimensions	820 x 680 x 250 mm 32.28 x 26.77 x 9.84 in
Max. workpiece weight	400 kg 882 lbs
Travel U, V	± 45 mm ± 1.77 in
Wire diameters	0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in
Availability	Europe

CUT E 600 (UNIQUA HMI)
Travel X, Y, Z	600 x 400 x 350 mm 23.62 x 15.75 x 13.78 in
Max. workpiece dimensions	1030 x 800 x 350 mm 40.55 x 31.5 x 13.78 in
Max. workpiece weight	1000 kg 2205 lbs
Travel U, V	± 50 mm ± 1.97 in
Wire diameters	0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in
Availability	Europe

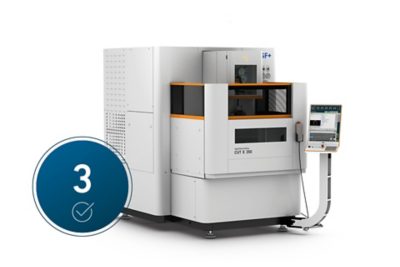

CUT E 350
Travel X, Y, Z	350 x 250 x 250 mm 13.78 x 9.84 x 9.84 in
Max. workpiece dimensions	820 x 680 x 250 mm 32.28 x 26.77 x 9.84 in
Max. workpiece weight	400 kg 882 lbs
Travel U, V	± 45 mm ± 1.77 in
Wire diameters	0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in
Availability	Europe

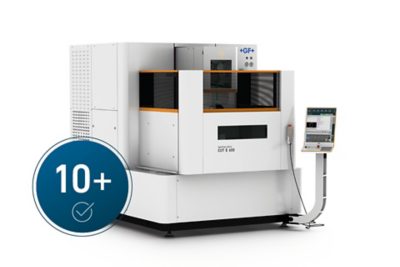

CUT E 600
Travel X, Y, Z	600 x 400 x 350 mm 23.62 x 15.75 x 13.78 in
Max. workpiece dimensions	1030 x 800 x 350 mm 40.55 x 31.5 x 13.78 in
Max. workpiece weight	1000 kg 2205 lbs
Travel U, V	± 50 mm ± 1.97 in
Wire diameters	0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in
Availability	Europe
