The solution delivered by eTRUE begins with CAD/CAM preparation, where the electrode study is efficiently performed and optimized by automatic computation of ideal undersize.

eTRUE manages the 3D CAD models throughout the global preparation to reflect reality during the manufacturing process. This approach incorporates the following elements:

  • 3D CAD models correspond to the job description during the preparation phase
  • Electrode inspection on active portion (contact areas)
  • Comparison between CAD model and actual part after inspection
  • Result of inspection is transformed and adapted for Die-Sinking EDM
  • Die-Sinking process based on real electrode data and rest of material

Automate your data flow

Benefits

  • Unique single input per Data
  • Facilitate Machine Process
  • All single process interfaced

Value

  • Save Time on CAD/CAM Preparation
  • Shorter Machining Time
  • Improve Quality

Higher Accuracy on Final Parts

Benefits

  • Automatic status of electrode quality
  • Intelligent GF treatment of electrode inspection

Value

  • Reduced inspection time
  • Improved accuracy/productivity
  • Avoid scrap parts after EDM machining

Avoid human errors – Reduce inspection time

Benefits

  • Absorbe CAD geometry from design
  • EDM expertise (optimum undersize) transferred to milling process

Value

  • Time saving
  • Increased productivity
  • Capability to reach performance especially for beginner’s users

CAD design

Part – electrode

Link to Multi-Process Preparation for automatic calculation of ideal undersize.

  • Real geometry
  • Optimum undersize



CAM

Milling

Preparation of tool paths for milling operations for the part and  electrode.

  • Undersize corresponds to optimum expected
  • Rest of material for EDM transferred to Multi-Process Preparation for die-sinking optimization


CAM

Inspection

Special inspection wizard for easy creation of inspection programs.

  • Based on real geometry
  • Real undersize identification
  • Real shape distorsion identification


CAM DS-EDM

MPP (Multi-Process Preparation)

Prepare the NC code for Die-sinking EDM. Prepare the global manufacturing process.

  • Optimum based on real geometry
    • Electrode
    • Rest of material
  • Complete NC programs

Job preparation

WSM (WorkShopManager)

Automatically generated complete manufacturing order.

  • Only the identification of the physical components by RFID need to be done

Job execution

Automatic execution in complex cells or stand-alone machines.

  • For CMM : special measurement data treatment (real offsets, true undersize and maximum deviation)

FORM eCAM

Your stand-alone CAM preparation software for Die-sinking EDM

A breakthrough stand-alone software programming module to get the most performance out of your GF Die-Sinking EDM machines.

  • Easy-to-use programming intelligence
  • Job description based on CAD data
  • Simulate and optimize the EDM program
  • Bring Die-sinking EDM programming into the engineering office
  • Available on machines with AC FORM HMI (v.1.2.0 or later)



LaserSUITE360

All-in one CAD/CAM software for GF Laser Machines

LaserSUITE360 offers CAD/CAM tools for job preparation and optimization, from tool path generation to precise laser parameter management, visualization, and anti-collision simulation

  • Easily achieve high-accuracy laser engraving, micromachining, and decoration
  • Create unique and finest textures on the most complex 3D shapes
  • Simplify and secure your computing process with confidence



Turbosoft plus

Most powerful CAx package for airfoil production

Turbosoft plus is a a specialized CAD/CAM system for airfoil components. From blade geometry optimization to toolpath generation, analysis and optimization, everything is covered in just one CAx software.

Over the past 20 years Turbosoft plus has evolved from a CAD/CAM software to a CAx system providing more than 500 airfoil machining centers worldwide with the g-technology tool path for continuous dynamic manufacturing of precision airfoils:

  • All-in-one solution
  • State-of-the-art process engineering
  • Updates and CAx support available



System 3R WorkShopManager

Automation for increased competitiveness

To stay competitive, manufacturers must be able to keep up. Palletisation is a major element in success; automation is essential for competitiveness. With System 3R as your partner, taking the step to automating and streamlining production is far easier than is often imagined.

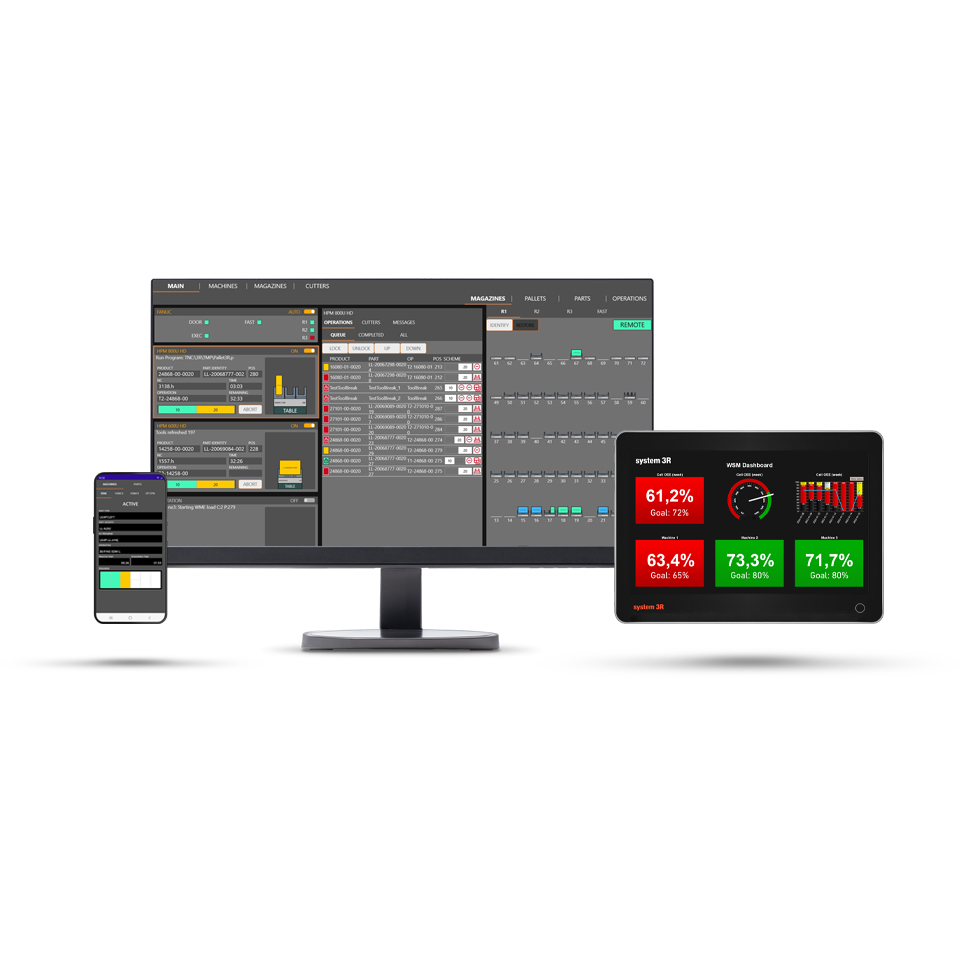

The steps are simple. You input the data (workpiece, fixture, NC programs, tooling, materials, etc.). Then, based on current orders, WSM 5 (WorkShopManager 5) shares it with your machine tools and stores all the information in one place.

Boosting Production Efficiency

  • WSM 5 optimises and schedules whatever your production environment involves (stand-alone machines, inspections, quality assurance, etc.).
  • Control of your manufacturing processes is seamless and real-time. Visibility of your stand-alone and automated operations is guaranteed.
  • Automated and non-automated work cells are seamlessly integrated into a smooth production flow.
