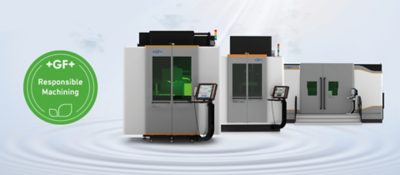

AgieCharmilles LASER S series

Innovative Texturing. Accelerated productivity.

A highly efficient, fully digital, all-in-one Laser texturing solution conceived to help you achieve the desired texturing quality without compromising productivity. Use the full potential of GF Machining Solutions’ latest generation Laser texturing innovation to stay ahead of your competitors.
GF Machining Solutions’ LASER S series sets a new milestone and makes it possible to execute challenging product designs at a maximum quality and productivity. Our latest-generation Laser texturing solutions LASER S series will empower designers to perfectly apply their designs to challenging surfaces and enable manufacturers to execute innovative graining into complex 3D shapes while controlling quality and cost per part, reducing lead time and machining time.


NEW

Discover the exceptional capabilities of our Laser Femtosecond source in the LASER S 1000/1200 U fs

Learn more

Please accept all cookies to view the external content.

Faster execution with unrivaled quality

Execute new designs up to 40% faster than before while keeping low manufacturing costs. Optimize machine performance with two laser sources. Ensure unequalled quality with high-speed 3D scanning system and wider marking field.

Revolutionary surface texturing

Answer to new geometrical pattern demands by being the quality benchmark of the market at higher speed. Each five-axis movement is calculated to most efficiently deliver the best shape of your texture while optimizing machining time.

Femtosecond Laser capabilities

Our new Femtosecond Laser source, now available in the LASER 1000 U fs and 1200 U fs, allows you to engrave and texture large-size parts, with the highest quality and finest details.

Performance and energy efficiency

Reliability and repeatability are key words for the AgieCharmilles LASER S Series thanks to its fully digital process and major energy efficiency achievements.

LASER S 1000/1200 U fs

Please accept all cookies to view the external content.

Please accept all cookies to view the youtube video content.

Ultrashort pulse laser: the power to create the finest details at the speed of light

The combination of our breakthrough Laser femtosecond ablation technology and our dedicated software solutions allow the LASER S to reach a new level of performance. That's the power of ultrashort pulse laser.

Machine any type of material

Engage into fine engraving of sharp edges, with minimal or no burr. Access the possibility to machine hard or brittle material, such as heat-treated metals, glass, technical ceramics and polymers.

Higher level micromachining

Apply directly grained aspects, including anti-scratching features, in a one-step operation as you engrave your parts. Achieve sharper geometries, lower Ra levels and higher brightness.

High process efficiency

With a lower cost per part, your Laser machine will be more efficient than ever. Engrave or texture in a fast and automated way. Post-processing is practically eliminated.

High flexibility

Two Laser sources in nanosecond and femtosecond pulse durations can equip the same machine. Toggle very quickly from one to the other. Depending on the application or desired results, it is possible to combine and vary performance, quality and even coloration.

LASER S 1000 U fs LASER S 1000 U fs
LASER S 1200 U fs LASER S 1200 U fs
Fine line patterns and textures Fine line patterns and textures
Fine curves Fine curves
Unique brush effects Unique brush effects
Sharper geometries with femtosecond Laser Sharper geometries with femtosecond Laser
Microengraving with femtosecond Laser Microengraving with femtosecond Laser
Finest details with femtosecond Laser Finest details with femtosecond Laser
The power of ultrashort pulse laser The power of ultrashort pulse laser
1/

LASER S 1000 U - 1200 U - 2500 U

Please accept all cookies to view the external content.

LASER S 2500 U LASER S 2500 U
LASER S 2500 U LASER S 2500 U
LASER S 2500 U LASER S 2500 U
LASER S 2500 U LASER S 2500 U
LASER S 2500 U LASER S 2500 U
LASER S 2500 U LASER S 2500 U
LASER S 2500 U LASER S 2500 U
1/

Patented Smartpatch innovation at full efficiency

Smartpatch innovation coupled with the AgieCharmilles LASER S hardware capabilities, push further your performance, so you experience the best five-axis Laser texturing solution on the market to meet your today and future texturing demands.

Twin laser sources for unprecedented agility

Manufacturing agility is the challenge; the LASER S is the solution. Be ready to switch from one Laser to another to execute your specific daily jobs you have both standard lasers or Flexipulse laser to achieve higher quality on the same solution.

High-speed 3D scanning system

Reduce your machining time by up to 40%. The high-speed 3D scanning system embedded in our unique Laser solution goes to a scanning mode up to 5,500 mm/s. You increase your machining productivity to shorten your lead time and reduce your machine return on investment (ROI). Be more efficient, be more clean and be right all the time, thanks to this highly efficient digital solution.

The multi-process solution to drive your success

In today’s fast-moving market, you never know what type of machining job you will confront tomorrow. That’s why it is becoming a must to have a machine that can be quickly adapted to your application. Be ready to execute Laser blasting, Laser structuring, Laser engraving, Laser machining, Laser texturing and Laser marking at full speed and this in a single setup.

Accelerated productivity with the LASER S series

Revolutionizing automotive design

Revolutionizing automotive design

Thanks to the unique capabilities of ultrashort pulse lasers, unleash your design creativity to meet new automotive market needs and performance demands. Obtain sharper geometries, finer details and brighter surfaces. Benefit from increased productivity and machine even the hardest type of material.

Optimal machining operations with a simplified process

Optimal machining operations with a simplified process

Overcome your business challenges with GF Machining Solutions’ complete solution for finishing your mold inserts—such as the closure mold cavity—in a single setup. Limit the risk of human error, open new design possibilities and reduce the need for additional machining processes. The LASER S series enables unprecedented quality to open new application horizons, like groove machining with surface finish as fine as Ra 1 µm.

New capability for fine patterns

New capability for fine patterns

New 5G smartphones are driving demand for plastic covers, putting your texturing performance to extreme tests. Engrave molds in a single Laser position with our LASER S. Position your business for success by meeting the extreme demands of this highly competitive sector.

New design for consumer electronics

New design for consumer electronics

Femtosecond Laser capabilities associated with our unique software are pushing the limits in term of design of ICT components such as molds used in the production of smartphones. Brands have the opportunity to use a powerful tool in order to generate unique customer experience and branding. In addition, our latest developments positively impact the productivity rate, which leads to cost reduction and faster return on investment.

Boost your manufacturing efficiency

Boost your manufacturing efficiency

Machine with confidence that you will keep your promises, with the increased automatic machine operations enabled by the LASER S in comparison to manual operations. We make sure your production is done within the time you promised and with a limited risk of errors. Execute small cavities in comparison to chemical etching - especially on challenging grains.

New design for high-tech products

Microengraving capabilities

Enable precise micromachining of cavities, that are traditionally manufactured by Die-sinking EDM. Control the shape and direction of brushed effects, regardless of the complexity of the part. Unleash your creativity and obtain any texture you want.

Service + Success

We take you new heights

Whether it is Milling, EDM, Laser texturing or Additive Manufacturing, our Service + Success experts guide you throughout the entire lifecycle of our Machining and Automation tools in order to help you reach your peak performance. To guide your ascent to performance, we provide a wide range of A la Carte Services with Operational Steering, Advanced Diagnosis, Certification, Upgrades, Training, Transformation and Financial Solutions.



Success Packs

We also offer all inclusive service as Success Packs to maximise customer's return on investment and empower them in their quest for success, across all industrial segments. Our subscription packs Bronze, Bronze+, Silver, Silver+ feature a comprehensive range of services that guarantee the access and support needed to get the most out of our customers' assets today, while preparing for the challenges of tomorrow.



Please accept all cookies to view the external content.

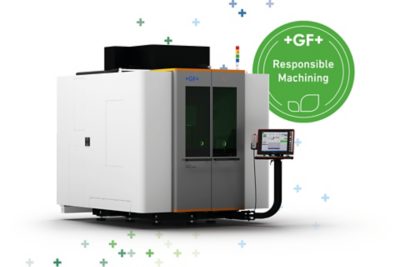

Sustainability

The newest generation of AgieCharmilles LASER S series can achieve significant reductions in energy consumption, up to 71% per part. The use of a 3D scanner, more powerful laser sources and our SmartPatch and SmartScan software packages have made this impressive achievement possible.

3D Scanner

The use of a 3D scanner instead of a 2D scanner allows to reduce the total axis movements.

SmartPatch and SmartScan

These options improve performance and are even more efficient with a 3D scanner.

Laser source

A more powerful Laser source enhances the quality of engraving and improves operational speed.

Learn more

Specifications

LASER S 1000 U

Main specifications

Main specifications

Machine dimensions*

2240 x 2678 x 2645 mm

88.2 x 105.4 x 104.1 in

Space required for installation

3400 x 4000 mm

133.9 x 157.5 in

Machine weight

6500 kg

14330 lbs

Focal length

FSTC100/FS163/FS255 Type

Nanosecond pulsed Laser

50 W Flexipulse/100 W Flexipulse

Ultrashort pulsed Laser

20 W Femto Flexipulse Infrared FD

Electrical and pneumatic supply

Electrical and pneumatic supply

Nominal power

8 kVA

Air pressure

6 bar

Required air output flow

300 l/min

Printing specifications

Printing specifications

X, Y, Z travels

1000 x 550 x 880 mm

39.4 x 21.7 x 34.6 in

Travel Laser head: A

180 °

Travel machine table: B

720 °

Table dimensions

380 mm

15 in

Distance floor to table

925 mm

36.4 in

Working area

Working area

Max workpiece dimensions

Ø 660 ** mm

Ø 26 ** in

Max workpiece machining height

550 ** mm

21.7 ** in

Max workpiece weight five axis

150 kg

330 lbs

Full five-axis dimensions

Ø 510 x 480 ** mm

Ø 20 x 18.9 ** in

* Width x depth x height ** with FS163 *** with FS255 **** with FS340

LASER S 1200 U

Main specifications

Main specifications

Machine dimensions*

2240 x 3404 x 2932 mm

88.2 x 134 x 115.4 in

Space required for installation

3500 x 5000 mm

137.8 x 196.9 in

Machine weight

9170 kg

19180 lbs

Focal length

FSTC100/FS163/FS255 Type

Nanosecond pulsed Laser

100 W Flexipulse

Ultrashort pulsed Laser

20 W Femto Flexipulse Infrared FD

Electrical and pneumatic supply

Electrical and pneumatic supply

Nominal power

8 kVA

Air pressure

6 bar

Required air output flow

300 l/min

Printing specifications

Printing specifications

X, Y, Z travels

1200 x 900 x 1200 mm

47.2 x 35.4 x 47.2 in

Travel Laser head: A

180 °

Travel machine table: B

720 °

Table dimensions

800 mm

31.5 in

Distance floor to table

1030 mm

40.6 in

Working area

Working area

Max workpiece dimensions

Ø 810 *** mm

Ø 31.9 *** in

Max workpiece machining height

850 *** mm

33.5 *** in

Max workpiece weight five axis

1200 kg

2646 lbs

Full five-axis dimensions

Ø 560 x 710 *** mm

Ø 22 x 28 *** in

* Width x depth x height ** with FS163 *** with FS255 **** with FS340

LASER S 2500 U

Main specifications

Main specifications

Machine dimensions*

6,420 x 3,573 x 3,687 mm

252.8 x 140.7 x 145.2 in

Space required for installation

7,125 x 6,304 x 3,804 mm

280.5 x 248.2 x 149.8 in

Machine weight

24,000 kg

52,911 lbs

Focal length

 FS340 Type

Ytterbium pulsed laser (Flexipulse)

 100 / 150 W

Electrical and pneumatic supply

Electrical and pneumatic supply

Nominal power

40 kVA

Air pressure

6 bar

Required air output flow

150 l/min

Printing specifications

Printing specifications

X, Y, Z travels

2,500 x 2,000 x 1,200 mm

98.4 x 78.74 x 47.24 in

Travel Laser head: A

240 (-90/+150) °

Travel machine table: B

370 (-185/+185) °

Table dimensions

2,600 x 2,200 mm

102.4 x 86.6 in

Distance floor to table

600 mm

23.6 in

Working area

Working area

Max workpiece dimensions

2,700 x 2,300 mm

106.3 x 90.5 in

Max workpiece machining height

1,340 mm

52.8 in

Max workpiece weight

10,000 kg

22,046 lbs

Full five-axis dimensions

Ø 750 x 1,340 **** mm

Ø 29 x 52.8 **** in

* Width x depth x height ** with FS163 *** with FS255 **** with FS340
