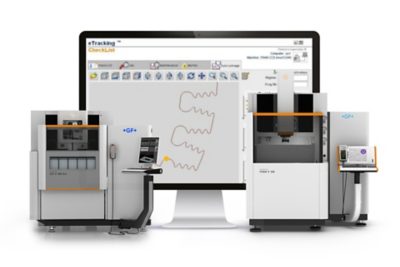

Unlock the full potential of your machinery with our digital twin technology. Our advanced solutions empower you to optimize machine maintenance through intuitive health dashboards, minimize downtime with intelligent diagnostics, and enhance productivity with real-time machining quality monitoring. Track part production quality and ensure repeatability, allowing you to maintain high standards and improve overall performance.
Our eTracking software ensures complete traceability and superior quality for every part. Each step in the process is meticulously documented, with machines monitored, tooling tracked, programs made reproducible, and technology kept reliable. Additionally, operating modes are fully recorded, providing a seamless quality assurance process throughout.

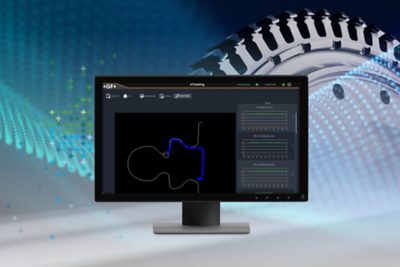

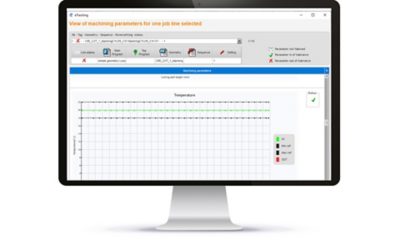

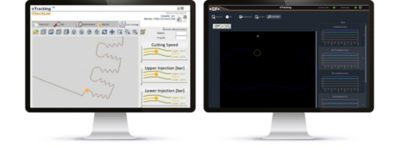

Monitor live machining process information with a 2D real-time graphic view where tolerances are controlled.
Machining data is sent every second and the machining behavior is corrected and adapted.

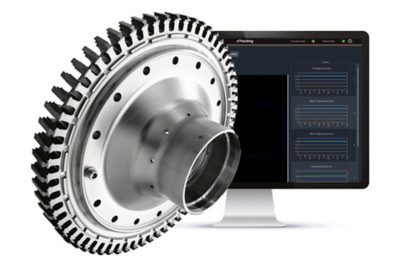

Analysis reports are generated to define maintenance tasks and final records are produced for traceability and statistical assessment.
| Function | Wire-cutting EDM | Die-sinking EDM |
| PART ID: Define executed part context: Part ID, OF ID, … | ✓ | ✓ |
| WORKFLOWS: Configure workflows of operations to be executed before part execution and ensure workflow execution before starting the machine | ✓ | ✓ |
| MACHINE CHECK: Test machine consumables capacity before lauching execution | ✓ | Limited signal |
| REALTIME RECORDING: During part execution the system records all defined signals | ✓ | Limited signal |

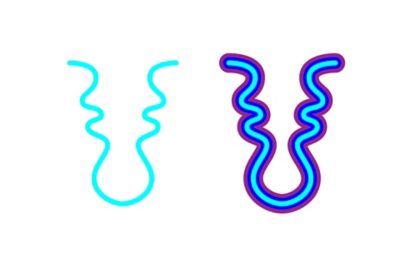

| REALTIME TOLERANCE CHECK: During part execution the system monitors the deviations based on the tolerances defined for each signal | ✓ | Limited signal |
| REALTIME MACHINE STOP: Suspend machine execution in case of tolerance deviation | ✓ | ✓ |
| REALTIME HISTORICAL VISUALIZATION: During part execution the system displays in a 2D graph the recorded signals behavior and the related tolerances | ✓ | ✗ |
| SUMMARY REPORT EXPORT: Generation of a CSV file containing the summary information for each operation, with bad or good status result | ✓ | ✓ |
| RAW DATA EXPORT: Generation of a CSV file containing all the recorded data | ✓ | ✗ |
| EXPLORE DB RECORDS: Open any past recorded job and visualize the recorded data | ✓ | ✗ |
| CREATE PART TEMPLATE: Create tolerance limits min/max based on existing recorded data | ✓ | Limited signal |
| AUTOMATION OPTION: Replace operator manual interaction by complete automatic process controlled by a WSM solution | ✓ | ✗ |
