GF Machining Solutions, a leader in Die-sinking EDM since 1954, combines Agie and Charmilles' expertise. Their AgieCharmilles FORM machines feature the Intelligent Power Generator (IPG) and Tecform Algorithmic Intelligence. Discover their exceptional performance in our second-hand machines, available for immediate delivery!
| FORM X 600 - #592.200.011.0045 | |
| Travel X, Y, Z | 600 x 400 x 500 mm |
| Max. workpiece dimensions | 1200 x 800 x 350 mmm |
| Max. workpiece weight | 2000 kg |
| Max. electrode weight |
50 kg |
| Min./Max. distance between table and chuck | 200-700 mm |
| Location | Switzerland |
| Year of manufacturing | 2023 |
| Erosion hours |

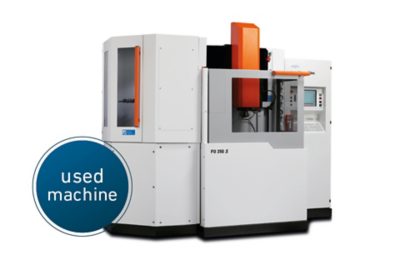

| FO 350 - #642018 | |
| Travel X, Y, Z | 350 x 250 x 300 mm |
| Max. workpiece dimensions | 780 x 530 x 300 mm |
| Max. workpiece weight | 500 kg |
| Max. electrode weight |
50 kg |
| Min./Max. distance between table and chuck | 150-450 mm |
| Location | France |
| Year of manufacturing | 2003 |
| FORM 30 - #395.900.0179.0060 | |
| Travel X, Y, Z | 600 x 400 x 400 mm |
| Max. workpiece dimensions | 1000 x 700 x 400 mm |
| Max. workpiece weight | 1000 kg |
| Max. electrode weight |
50 kg |
| Location | Poland |
| Year of manufacturing | 2013 |
| AT Spirit 2 - #T42.001.0027 | |
| Travel X, Y, Z | 350 x 250 x 300 mm |
| Max. workpiece dimensions | 780 x 530 x 300 mm |
| Max. workpiece weight | 500 kg |
| Max. electrode weight |
50 kg |
| Min./Max. distance between table and chuck | 150-450 mm |
| Location | France |
| Year of manufacturing | 2007 |

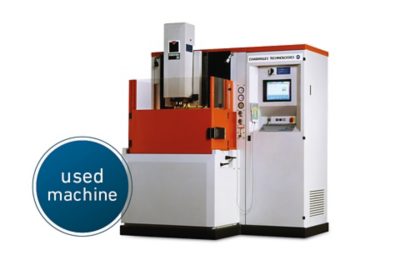

| Roboform 30 - #625129 | |
| Travel X, Y, Z | 350 x 250 x 300 mm |
| Max. workpiece dimensions | 940 x 590 x 370 mm |
| Max. workpiece weight | 500 kg |
| Max. electrode weight |
50 kg |
| Min./Max. distance between table and chuck | 150-450 mm |
| Location | France |
| Year of manufacturing | 1997 |
