AgieCharmilles CUT C Series

The CUT C series is designed to guarantee the best performance while delivering low running costs. Optimized cutting speeds and reliable accuracy provide the largest adaptable via the use of the EDM expert programming modules production volume in its class, while the AC CUT HMI 2 system ensures easy programmability via the use of the EDM expert programming modules.

CUT C applications
Machine specifications

CUT C 350 - CUT C 600

Please accept all cookies to view the external content.

AgieCharmilles CUT E 350

AgieCharmilles CUT E 600

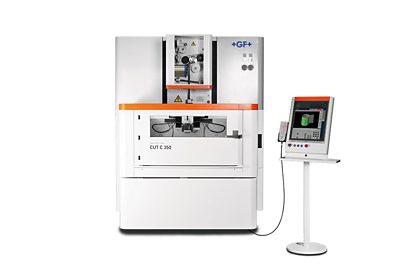

AgieCharmilles CUT C 350

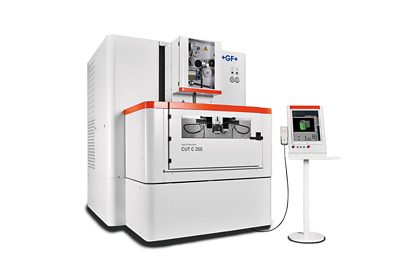

AgieCharmilles CUT C 350

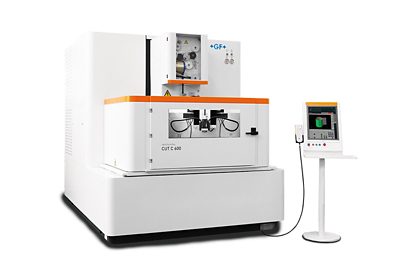

AgieCharmilles CUT C 600

Specifications

CUT C 350

Main Specifications
Travel X, Y, Z	350 x 250 x 250 mm
Max. taper angle / height	± 30°/50 mm
Max. workpiece dimensions	820 x 680 x 250 mm
Max. workpiece weight	400 kg

Workpiece and electrode
Travel U, V	± 45 mm
Wire diameters	0.15, 0.20, 0.25, 0.30 mm
Max. wire spool weight	8 kg

CUT C 600

Main Specifications
Travel X, Y, Z	600 x 400 x 350 mm
Max. taper angle / height	± 30°/50 mm
Max. workpiece dimensions	1030 x 800 x 345 mm
Max. workpiece weight	1000 kg

Workpiece
Travel U, V	± 50 mm
Wire diameters	0.15, 0.20, 0.25, 0.30 mm
Max. wire spool weight	8 kg
