Our robust hole drilling EDM solutions enable you to drill holes in electrically conductive materials at a very high speed with a five-axis configuration, at any angle. Discover their performance and get ready to have a hole drilling machine delivered in your workshop now!

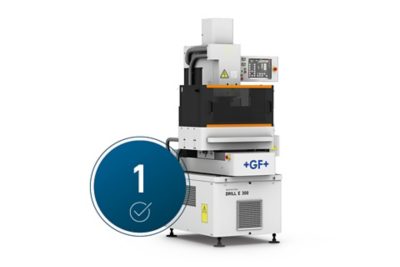

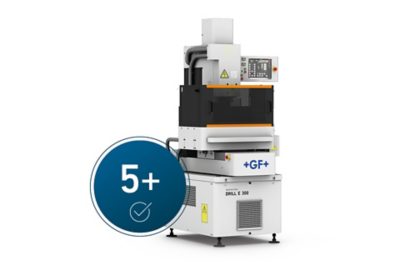

| DRILL E 300 | |
| Electrode diameter | 0.3 up to 3 mm (option: 0.10, 0.15, 0.20 mm) 0.012 up to 0.12 in (option: 0.004, 0.006, 0.008 in) |
| Max. drilling depth | 200 mm 7.78 in |
| Max. workpiece weight | 300 kg 660 lbs |
| Travel paths of axes X, Y and Z | 300 x 200 x 300 mm 11.8 x 7.8 x 11.8 in |
| Worktable size (width x length) | 400 x 300 mm 15.7 x 11.8 in |
| Availability | Europe |

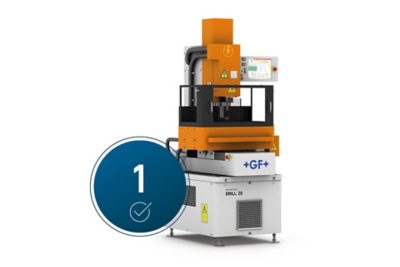

| DRILL 20 | |
| Electrode diameter | 0.3 up to 3 mm (option: 0.10, 0.15, 0.20 mm) 0.012 up to 0.12 in (option: 0.004, 0.006, 0.008 in) |
| Max. drilling depth | 200 mm 7.78 in |
| Max. workpiece weight | 300 kg 660 lbs |
| Travel paths of axes X, Y and Z | 300 x 200 x 300 mm 11.8 x 7.8 x 11.8 in |
| Worktable size (width x length) | 400 x 300 mm 15.7 x 11.8 in |
| Availability | Europe |
