Mikron MILL S/X U series

Dynamic, precise machining for perfect finishes
Achieve high dynamic, precision and surface finish in mold and part production with the highest productivity on the most iconic compact machine. With an optimized thermal management system and the possibility to easily integrate Automation, the Mikron MILL S/X U series is the perfect match for customers who are looking to optimize their processes.

Please accept all cookies to view the external content.

Dynamic

Answer growing part complexity, precision and cycle time demands with a five-axis strategy. Get the ideal combination of linear, rotating and swiveling axes and shorten your production time with direct Milling in one clamping operation as a substitute for other process steps. Profit from perfect surface quality and precision due to single-clamping production and perfectly aligned five-axis kinematics.

Precision and high surface quality

Perfect machine design with highest mechanical requirements provides the basis for high surface quality and repeatability. The reliable Step-Tec Spindle and linear motors in combination with Ambient Robust technology always ensure high surface quality on parts. Master the challenges of a wide range of applications and short-term market requirements while maintaining high accuracy.

Iconic ergonomics and design

The Mikron MILL S/X U series is very well-known on the market for its ideal ergonomics and fit in customers’ workshops. The ideal machine design allows perfect machine setup and accessibility. Increase your return on investment (ROI) through perfect machine-robot connectivity and scalability.

Focus on design and energy efficiency

Maintaining the highest level of precision while consuming less energy, the Mikron MILL S/X U series is a sustainable solution for any high-end milling challenges. This starts with design of the machine from the very beginning, with a new control unit, a more efficient exhaust system and intelligent temperature control.

MILL S/X 400 U – MILL S/X 600 U – MILL S 200 U

Please accept all cookies to view the external content.

Milling machine - 5 axis - Mikron MILL S/X U series MILL S/X 400 U
Milling machine - 5 axis - Mikron MILL S/X U series MILL S/X 600 U
Milling machine - 5 axis - Mikron MILL S 200 U MILL S 200 U
Milling machine - 5 axis - Mikron MILL S 200 U MILL S 200 U
1/

100% precision right on time and process

With Automated Machine Calibration (AMC) as standard, the machine geometry can be calibrated at any time within minutes by any operator. The powerful cooling of all machine components will keep your process stable.

+45% reduction of tool center point drift

The Ambient Robust technology enables constant stabilization of the machine body temperature. Minimal movement of machine geometry will result in lowest possible drift of the tool center point.

+40% higher speed for more competitiveness

The strong linear motors capable of a speed up to 100m/min position you ahead of your competition. Reduce your cost per part thanks to higher machine dynamics.

24-h billable autonomy

Discover integrated Automation with GF Machining Solutions' most compact pallet changer. This solution is prepared for third-party automation with robot interface. Even with automation, access to the working area is always ensured.

Applications

Automation comes standard - MILL S/X U - Milling machines GF Machining Solutions

Automation comes standard

Palletized Automation is one of the best ways to cut down setup times and maximize spindle utilization – and it comes standard on MILL S/X U series machines. Whether it is unmanned series production or a range of different parts, this series is ideal for any shop looking for the highest level of throughput. The machine also comes with a standardized robot interface to take the single-machine MILL S/X U.

Complex-part production, perfected - MILL S/X U - Milling machines - GF Machining Solutions

Complex-part production, perfected

Designed to allow manufacturers to reach new levels of speed and productivity, the MILL S/X U series also offers ultra-high-speed spindles, integrated Automation and smart machine modules that are all aimed at minimizing non-cutting time and maximizing operator productivity. Superior surface finishes help to eliminate post-processing operations, and when the operators need to intervene, the ergonomic design makes their access simple.

Shiny surface finish and precise phases

Shiny surface finish and precise phases

Increase overall process productivity by combining finishing and polishing in one operation.

No performing limits on hard material

No performing limits on hard material

Increase flexibility and value by performing solid state carbide processing.

Improve your tooling, perfect your plastic part

Improve your tooling, perfect your plastic part

Simplify production chain and reduce production cost of molds due to perfect suface quality.

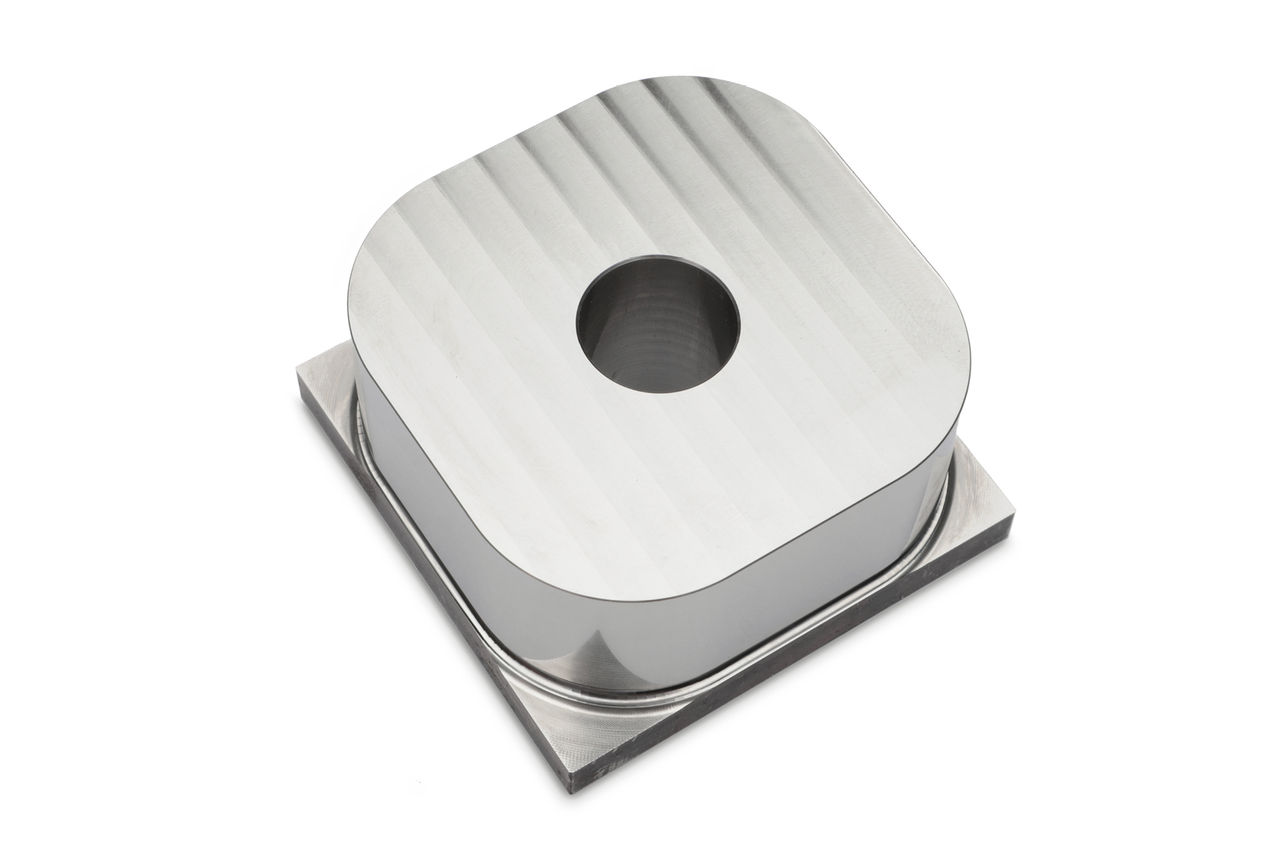

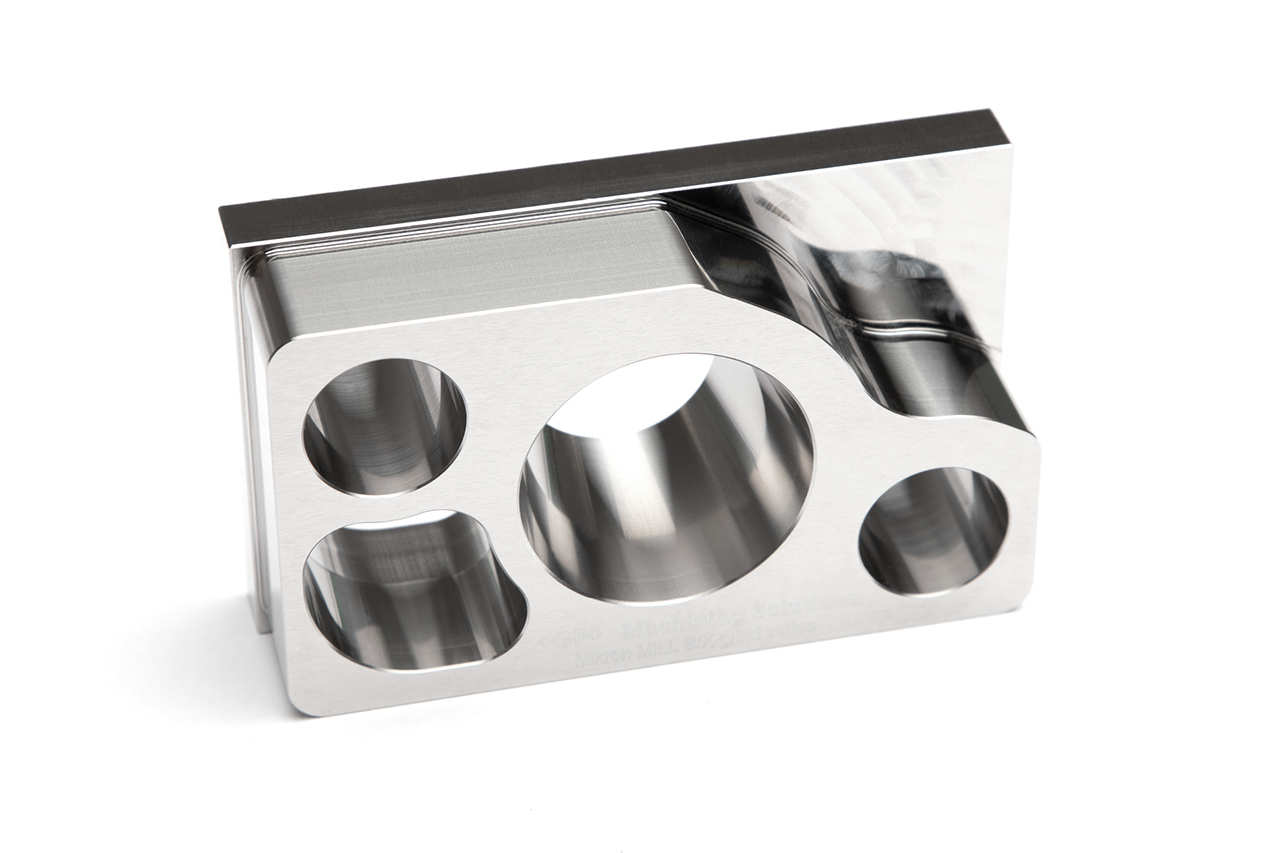

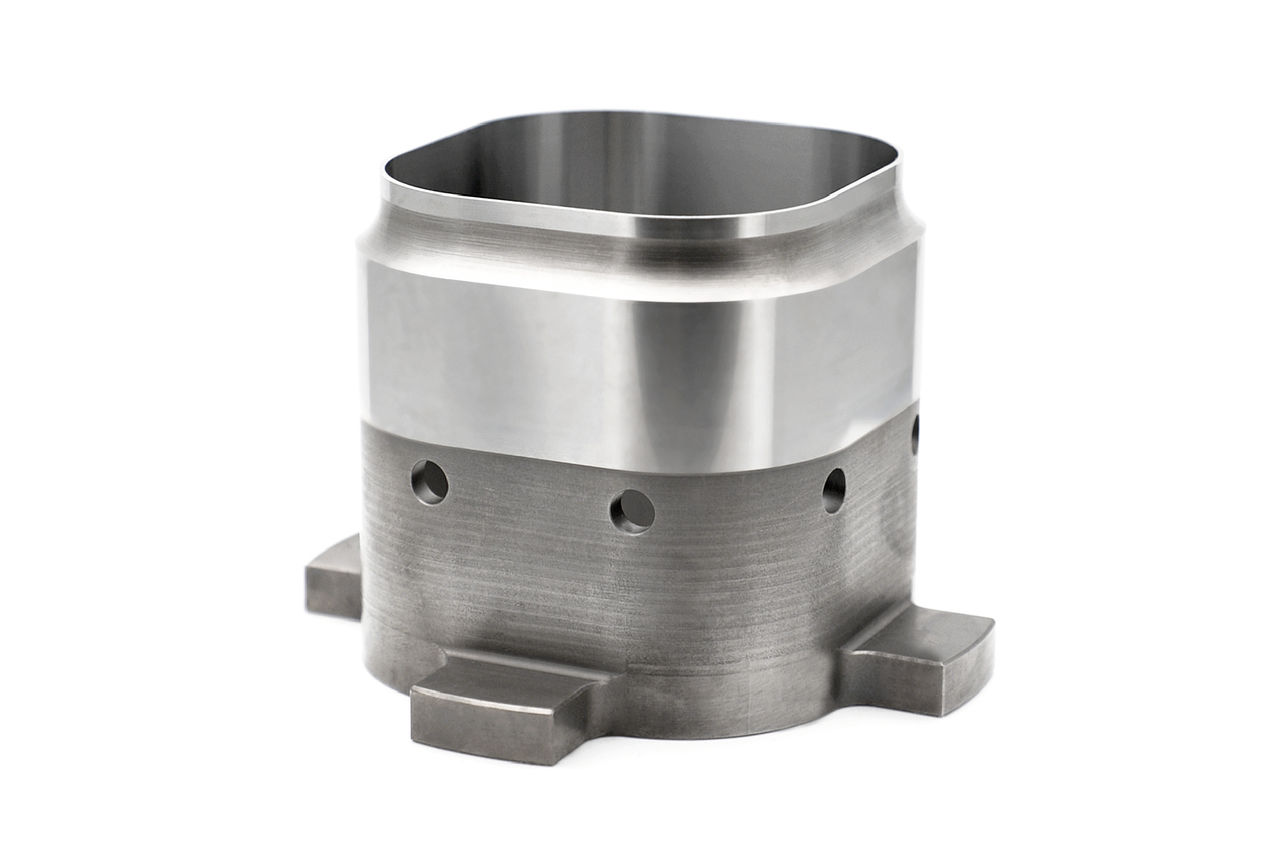

Jig grinding

Secure and reduce your manufacturing process for optimal surface quality with a single machine



Please accept all cookies to view the external content.

Mikron MILL S/X U machines are able to combine Milling and jig grinding on the same machine. The grinding setup into the machine has been well designed in order to maintain standard workpiece dimensions and clamping surface even for Automation. Nevertheless, the laser measuring system and the dressing spindle are located closer to the working area for a quick and fast grinding process. Through this two-in-one solution, GF Machining Solutions improves and significantly reduces customers’ manufacturing processes. The combination of milling and grinding technologies, extremely high machine dynamics, and consistent thermal stability and accuracy provide fast ROI and high-end, quality products.

Please accept all cookies to view the external content.

Two-in-one solution

Combine Milling and jig grinding on a single machine to both reduce the part manufacturing process and increase surface quality. The closed grinding process (grinding + measuring) accelerates your time to market.

Monitor your process

Dressing spindle is equipped with an acoustic emission (AE) sensor to track and visualize on the Heidenhain control the signal during tool dressing. The machine can be equipped with an additional AE sensor to track grinding operations in order to further optimize the process.

Three- or five-axis grinding process

Thanks to the Mikron MILL S/X U series extend your business opportunity by combining milling and grinding process on the same machine in three- or five-axis simultaneous. Get easily a surface quality of < Ra 0.06 µm

Stable grinding process

Easily and significantly increase surface quality on parts with the closed grinding process (grinding/dressing/measuring) and the monitoring through the AE sensors.

Maximize your potential

Mikron MILL S/X (U) series machines are Automation ready and the grinding option does not impact standard workpiece dimensions or the standard pallet changer. Get automated parts changing to increase your production output while achieving 3 µm machining accuracy and less than 0.06 µm surface roughness.

Sustainability

Maintaining the highest level of precision while consuming less energy, the Mikron MILL S/X U series is a sustainable solution for any high-end milling challenges. This starts with design of the machine from the very beginning, with a new control unit, a more efficient exhaust system and intelligent temperature control.

Please accept all cookies to view the external content.

New control generation

The change to a new CNC, Heidenhain TNC 640, improves the control efficiency.

Highly efficient exhauster system

The implementation of a Venturi nozzle in the exhauster system helps to significantly reduce the compressed air usage.

Design

Several design changes, such as switching to LED lights, also help improve the energy efficiency.

ITC – Intelligent Temperature Control

The continuous improvements made on this software help compensating temperature fluctuations and also significantly increase the already improved precision of the new generation of Milling machines.

Learn more

Specifications

MILL S 200 U
Main specifications
Main specifications
Travel X,Y,Z
 160 x 160 x 200 mm
6.30 x 6.30 x 7.87 in
Swiveling range +30°
-120°
Rotary range n x 360°
Rapid traverse X,Y,Z 42 m/min
1,653 in/min
Rapid traverse: Swiveling / Rotating 150 / 220 rpm
Working spindle (40% ED, S6) 50,000 (HSK-E32) / 8.5 / 3.4 rpm/kW/Nm
Pallet/clamping surface GPS 120
ITS 148
Macro Magnum 156
Macro 54
Max. load (incl. pallet) 8 kg
17.64 lbs
Tool magazine 30/60/150 (HSK-E32)
Machine weight 3,600 kg
7,936 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings

layout front
layout top

MILL S/X 400 U
Main specifications
Main specifications
Travel X,Y,Z
 500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Swiveling range +110°
-110°
Rotary range n x 360°
Rapid traverse X,Y,Z 61 m/min (MILL S)
2,401 in/min
100 m/min (MILL X)
3,937 in/min
Rapid traverse: Swiveling / Rotating 165 / 250 rpm
Working spindle (40% ED, S6) 30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Pallet/clamping surface MacroMagnum 156
ITS 148
Max. load (incl. pallet) 25 kg
55 lbs
Tool magazine 18/36/68/168 (HSK-E40)
Machine weight 7,000 kg
15,432 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings

layout front
layout profile
layout mill s/x 400
layout max part rotation

MILL S/X 600 U
Main specifications
Main specifications
Travel X,Y,Z
 800 x 600 x 500 mm
31.5 x 23.62 x 19.68 in
Swiveling range +30°
-110°
Rotary range n x 360°
Rapid traverse X,Y,Z 61 m/min (MILL S)
2,401 in/min
100 m/min (MILL X)
3,937 in/min
Rapid traverse: Swiveling / Rotating 60 / 150 rpm
Working spindle (40% ED, S6) 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Pallet/clamping surface Dynafix 280 x 280/350 x 350
GPS 240 x 240
UPC 320 x 320
Max. load (incl. pallet) 120 kg
264 lbs
Tool magazine 18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight 9,900 kg
21,825 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings

layout front
layout profile
layout mill s/x 400
layout max part rotation
