Wire-cutting EDM

What is Wire-cutting EDM?

The Wire EDM process uses an electrical spark created between two conductive parts, a wire that cuts and a part from which material will be removed. Using a dielectric solution to control the electrical discharge and applying the metallic wire to cut a programmed contour, a Wire EDM machine can produce extrusion dies, blanking punches, precise molds, special parts with small features and many more.


Why come to GF Machining Solutions for your wire cutting machine?

At the forefront of the EDM cutting industry for more than a hundred years, GF Machining Solutions has a proven record of providing reliable and high-performance solutions for wire electrical discharge machines. With a strong technical expertise and a solid patent history, GF Machining Solutions is your preferred partner for any wire EDM machining project, whether it be ultraprecise machining, mold making, or simply a process requiring high-precision cutting performances. Discover our unique innovations that allow our machines to provide outstanding performances.

Main competitive advantages

Please accept all cookies to view the youtube video content.

Intelligent Power Generator (IPG), the heart of our EDM machines

Do you know that the heart of our EDM sinker and wire cutting machines is engineered and assembled in-house at our facility in Switzerland? Our cutting-edge IPG (Integrated Power Generator) is a fully digital and resonant switching mode generator, enabling exceptional performance while minimizing power consumption.

Please accept all cookies to view the external content.

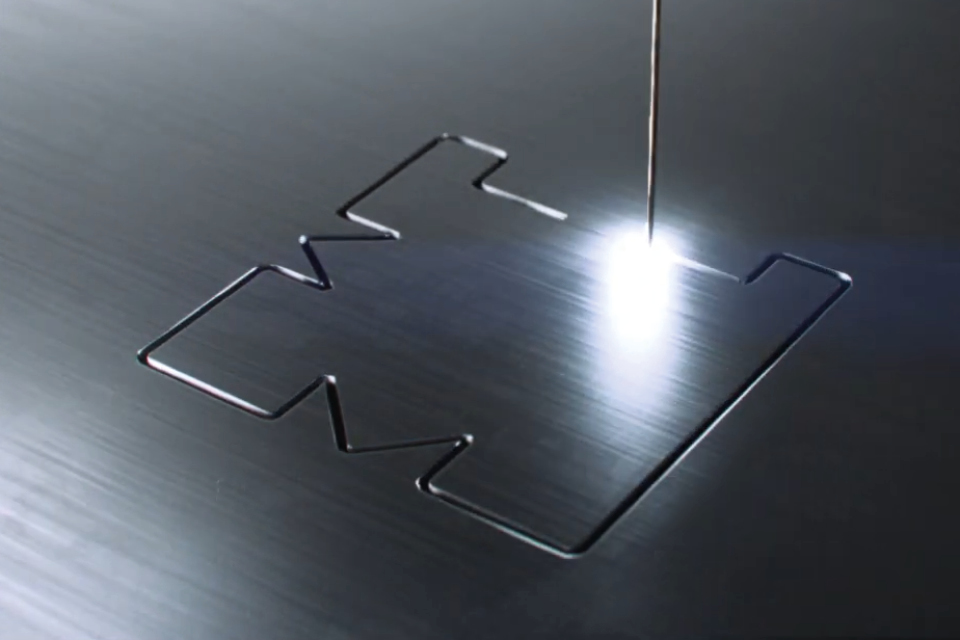

Turbo Tech

A new cutting technology offering a compromise between speed and accuracy in all flushing conditions, Turbo Tech is available for all wire types.

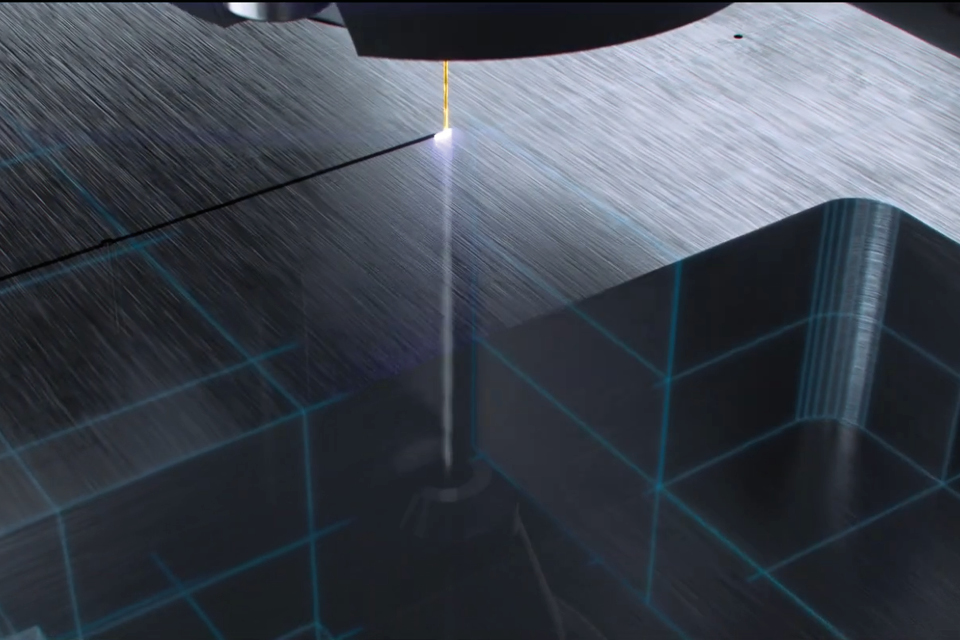

ISPS

Working from data collected and processed by the Spark Track platform, ISPS (Intelligent Spark Protection System) automatically controls and adapts the cutting parameters.

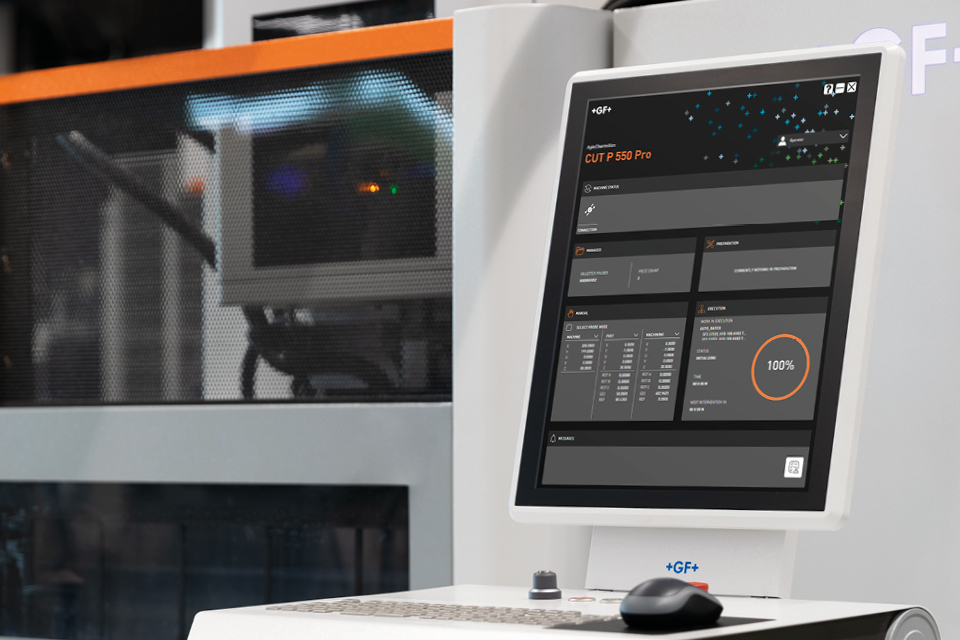

Uniqua

The new unique human machine interface that simplifies the operator's life by adapting to his way of working.

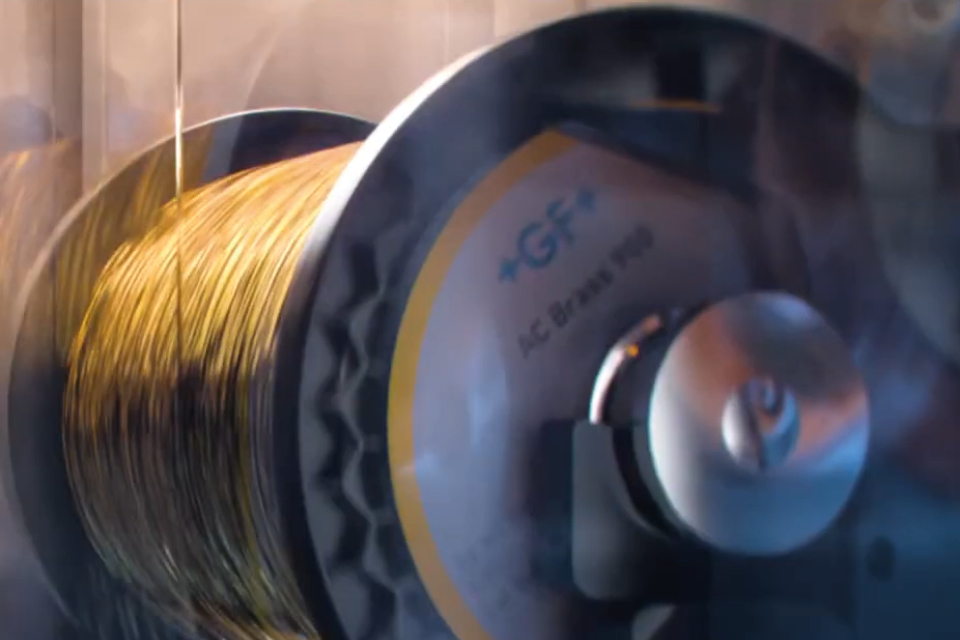

iWire

Sustainable and intelligent process that reduces wire consumption, this adaptive software module is especially useful with parts having a big variation of height or complex shapes.

Watch the videos of our competitive advantages

Turbo Tech

Please accept all cookies to view the youtube video content.

ISPS

Please accept all cookies to view the youtube video content.

Uniqua

Please accept all cookies to view the youtube video content.

iWire

Please accept all cookies to view the youtube video content.

Overview of the series

Please accept all cookies to view the external content.

CUT X series

X for Extreme

CUT P Pro series

P for Productivity

CUT F series

F for Flexibility

CUT E series

E for Efficiency

Our range of Wire EDM machines

machine range overview
small range
medium range
large and extra large machines

Overview Small Medium Large / Extra large

Please accept all cookies to view the external content.

Should you need to machine small parts for the medical industry to extra large parts for aerospace applications, find exactly the machine that fits your workpiece requirements:

Small
CUT X 350 / CUT 2000
CUT P 350 Pro / CUT E 350

Travel XYZ/UV (mm)

Travel XYZ/UV (mm)
CUT 1000 / CUT 1000 OilTech 220 x 160 x 100 / ± 40
CUT X 350 350 x 250 x 256 / ± 70
CUT 2000 S/X
CUT 2000 S/X OilTech		 350 x 250 x 256 / ± 70
CUT P 350 Pro 350 x 220 x 220 / 350 x 220
CUT F 350 350 x 250 x 250 / ± 45
CUT E 350 350 x 250 x 250 / ± 45

Medium
CUT X 500 / CUT 3000
CUT P 550 Pro / CUT E 600

Travel XYZ/UV (mm)

Travel XYZ/UV (mm)
CUT X 500
 500 x 350 x 256 / ± 70
CUT 3000 S/X
 550 x 350 x 256 / ± 70
CUT P 550 Pro 550 x 350 x 400 / 550 x 350
CUT F 600 600 x 400 x 350 / ± 50
CUT E 600 600 x 400 x 350 / ± 50

Large / Extra large
CUT P 800 Pro
CUT P 1250

Travel XYZ/UV (mm)

Travel XYZ/UV (mm)
CUT P 800 Pro 800 x 550 x 510 / 800 x 550
CUT P 1250 1250 x 850 x 700 / 1250 x 850

Application possibilities



Please accept all cookies to view the external content.

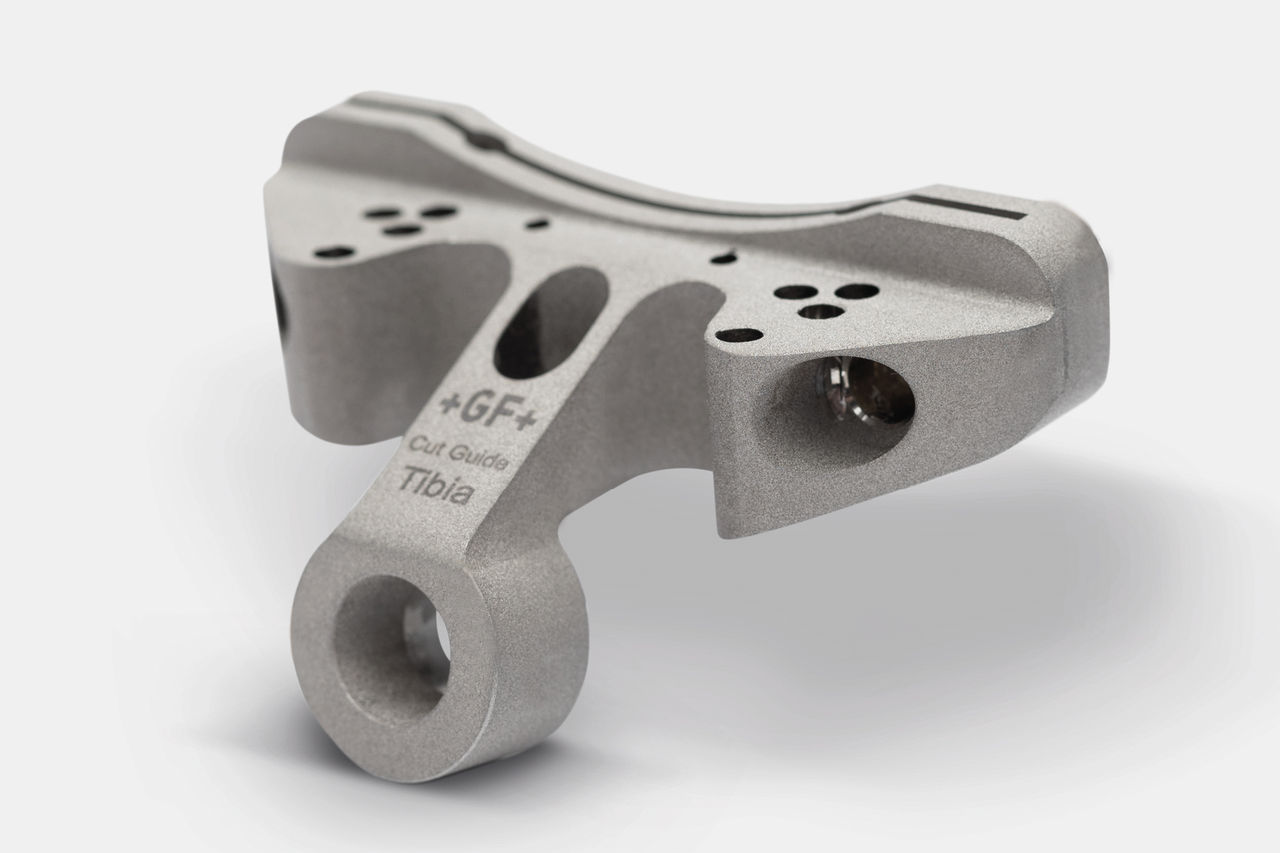

Medical

Create medical instruments precisely and with a high productivity thanks to our Wire cutting EDM machining solutions. Achieve challenging surface and tolerance requirements with high-speed spark erosion machines.

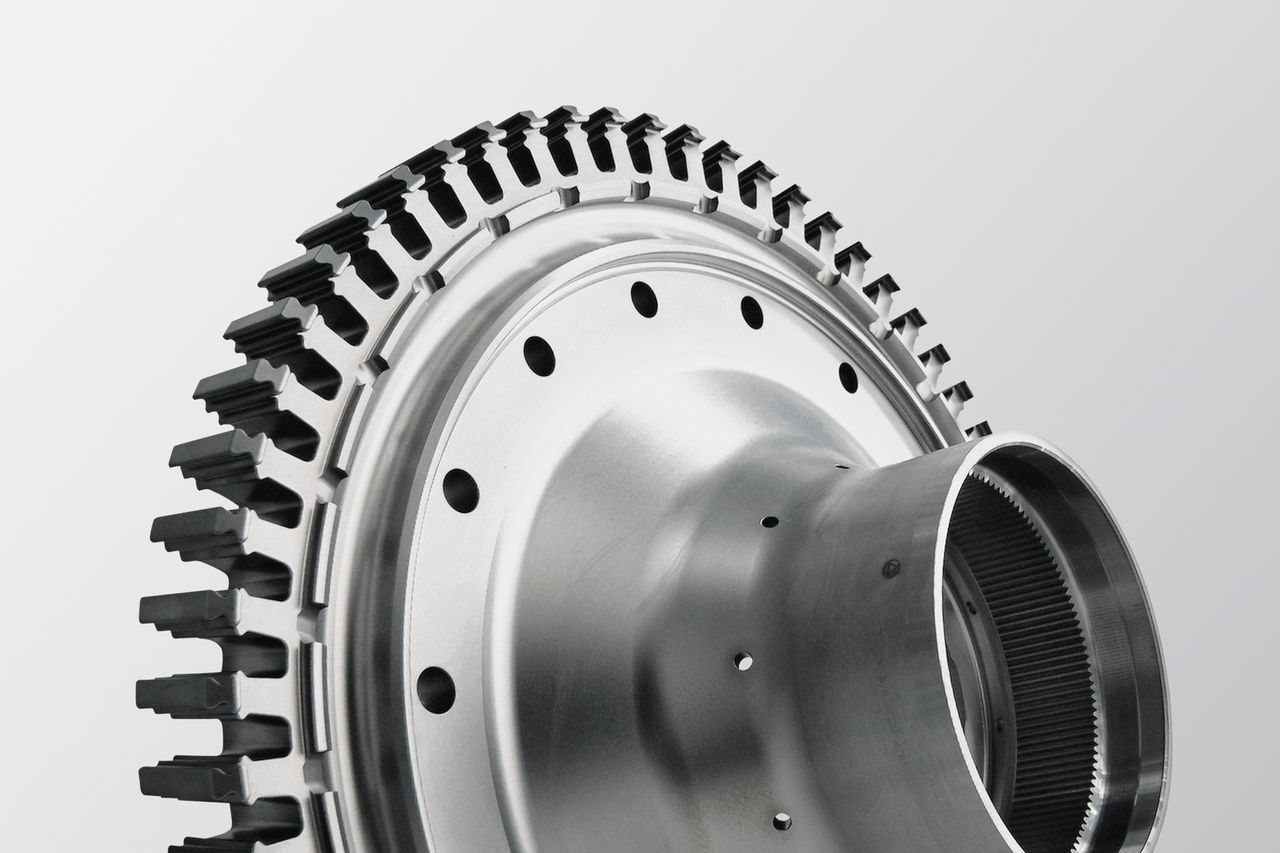

Aerospace

Use our dedicated Wire EDM machining to obtain top-notch aerospace parts with controlled weight reduction and evenly distributed stiffness. Moreover, our technologies allow to boost machining speed while leaving no visible recast layer.

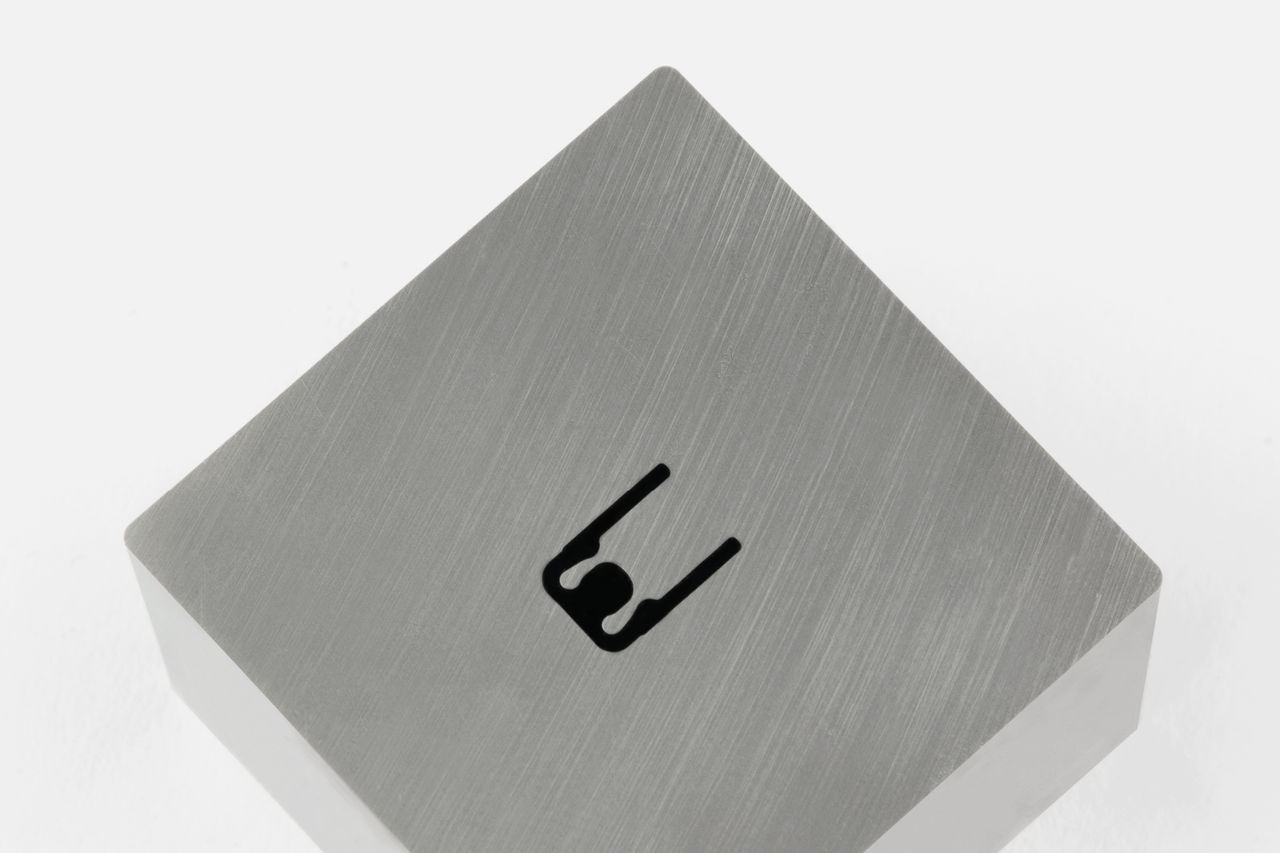

Electronic components and ICT

Manufacture battery parts or LED molding inserts that require extremely accurate tooling with fine edges and high surface finish. Our Wire EDM machines enable machining of carbide and steel with an integrated technology, with sharp micro-cutting profiles.

Please accept all cookies to view the external content.

Energy efficiency

With a reduction of 30% of the daily energy consumption compared to the previous generation, our new generation of Wire-Cutting machines is ready for the future. This important improvement is possible thanks to the smart module Econowatt during standby mode and to the latest generation of GF Machining Solutions’ Intelligent Power Generators (IPG) and to new injection pumps during operation.
